Product Details
＋

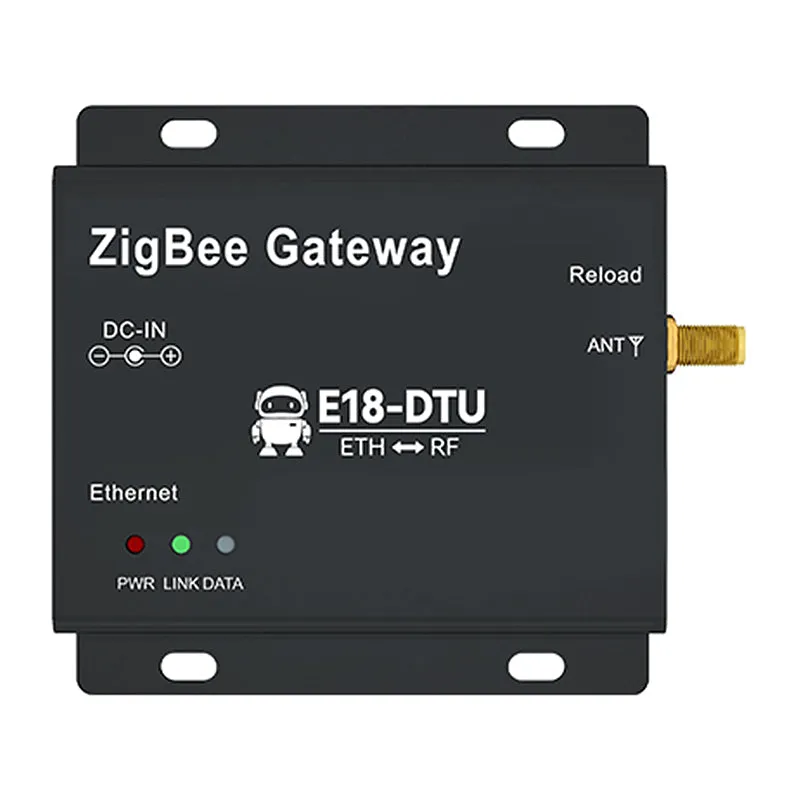

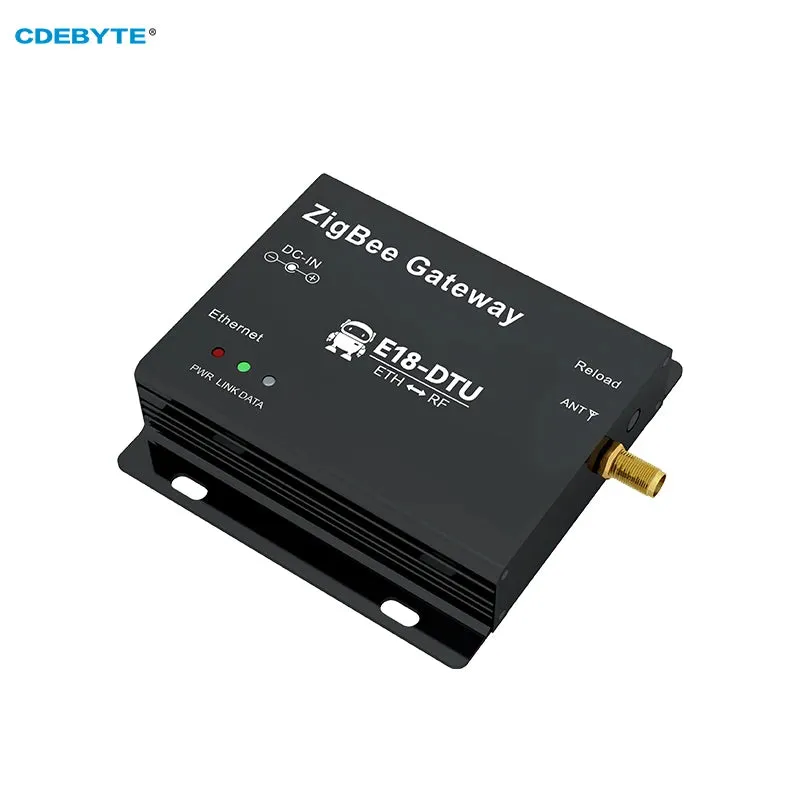

E18-DTU(Z27-ETH) high-power ZigBee gateway with complete supporting ZigBee node equipment ,support TCP/UDP/HTTP/MQTT
[Interface signal]：Ethernet
[Transmission method]： Ethernet
[Working voltage]： 8 ~ 28V DC

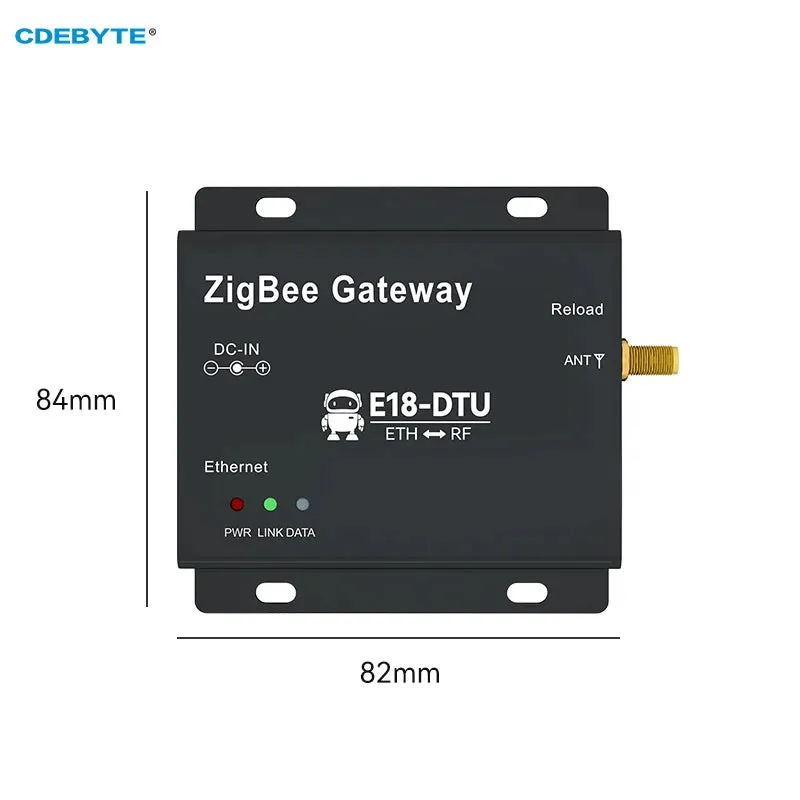

[Product size]：84*82*25mm
[Net product weight]：118g ± 2g

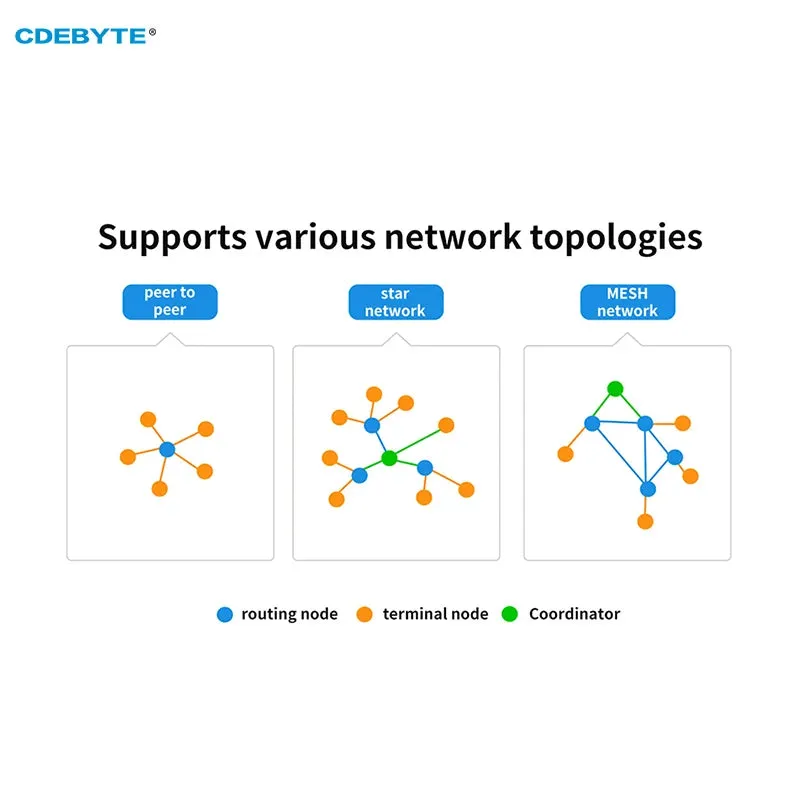

[Introduction]：E18-DTU (Z27-ETH) is a high-power ZigBee gateway with complete supporting ZigBee node equipment, supports adaptive network speed (up to 10M full duplex), and provides TCP Server, TCP Client, UDP Server, UDP Client , HTTP Client, MQTT Client six working modes, users can configure related configurations through WEB pages. There are 3 logical device types in a ZigBee network: coordinator, router, and terminal device. ZigBee network consists of a coordinator and multiple routers or multiple terminals.
| Project | Instruction |
| Operating Voltage | 8~28V DC, recommended to use 12V or 24V power supply |
| interface | Network port (RJ45), 10Mbps |
| Operating mode | TCP Server (default), TCP Client, UDP Server, UDP Client, HTTP Client, MQTT Client |
| Socket connection | TCP server supports 6-way client connections |
| Network protocol | TCP/UDP, MQTT, HTTP, IPv4, DHCP, DNS |
| IP acquisition method | Static IP (default), DHCP |
| DNS domain name resolution | support |
| domain name resolution server | 114.114.114.114 (customizable) |
| configuration method | Web page, parameter configuration tool, AT command |
| IP address | 192.168.3.7 (can be customized) |
| username | admin (customizable) |
| password | admin (customizable) |
| local port | 8887 (can be customized) |
| subnet mask | 255.255.255.0 (customizable) |
| gateway | 192.168.3.1 (customizable) |
| Serial cache | 1024 Bytes |
| packaging mechanism | 512 Bytes |
| Serial baud rate | 1200 ~230400 bps (default 115200) Note: It is recommended to use the default parameters, and it is not recommended to modify |
| data bit | 5, 6, 7, 8 (default) Note: It is recommended to use the default parameters, and it is not recommended to modify them |
| stop bit | 1 (default), 2 Note: It is recommended to use the default parameters, and it is not recommended to modify them |
| Check Digit | None (default), Odd, Even |
| Flow Control | not support |
| Product Size | 84×82×25mm |
| product weight | 118g ± 2g |
| Working temperature and humidity | -40~ 85℃, 5%~95%RH (no condensation) |
| storage temperature and humidity | -40 ~ 105℃, 5%~95%RH (no condensation) |
