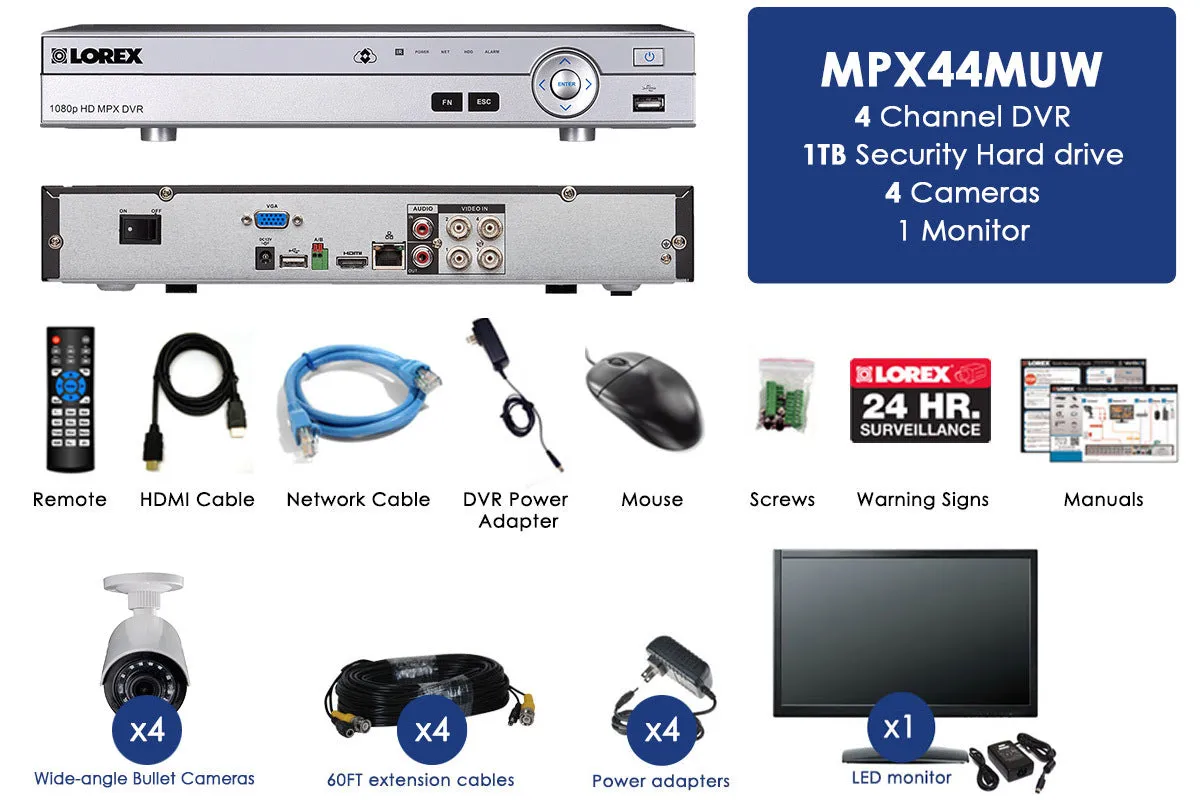

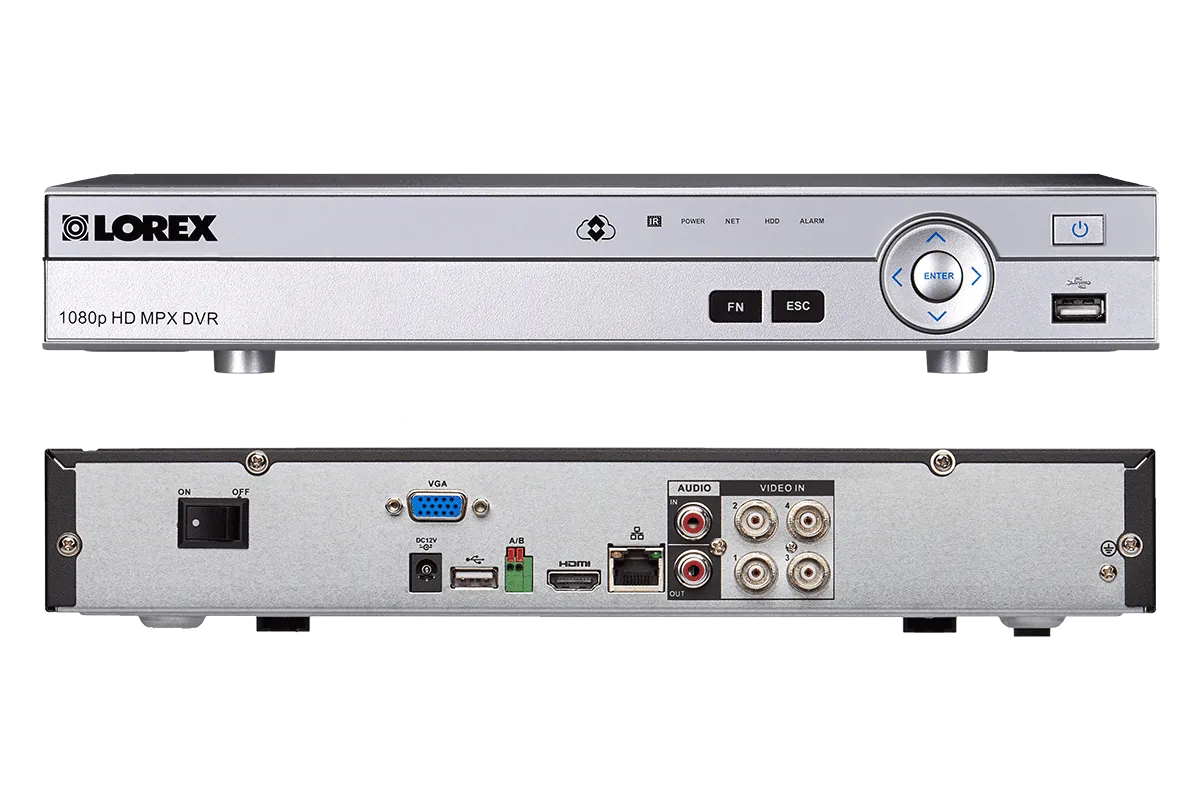

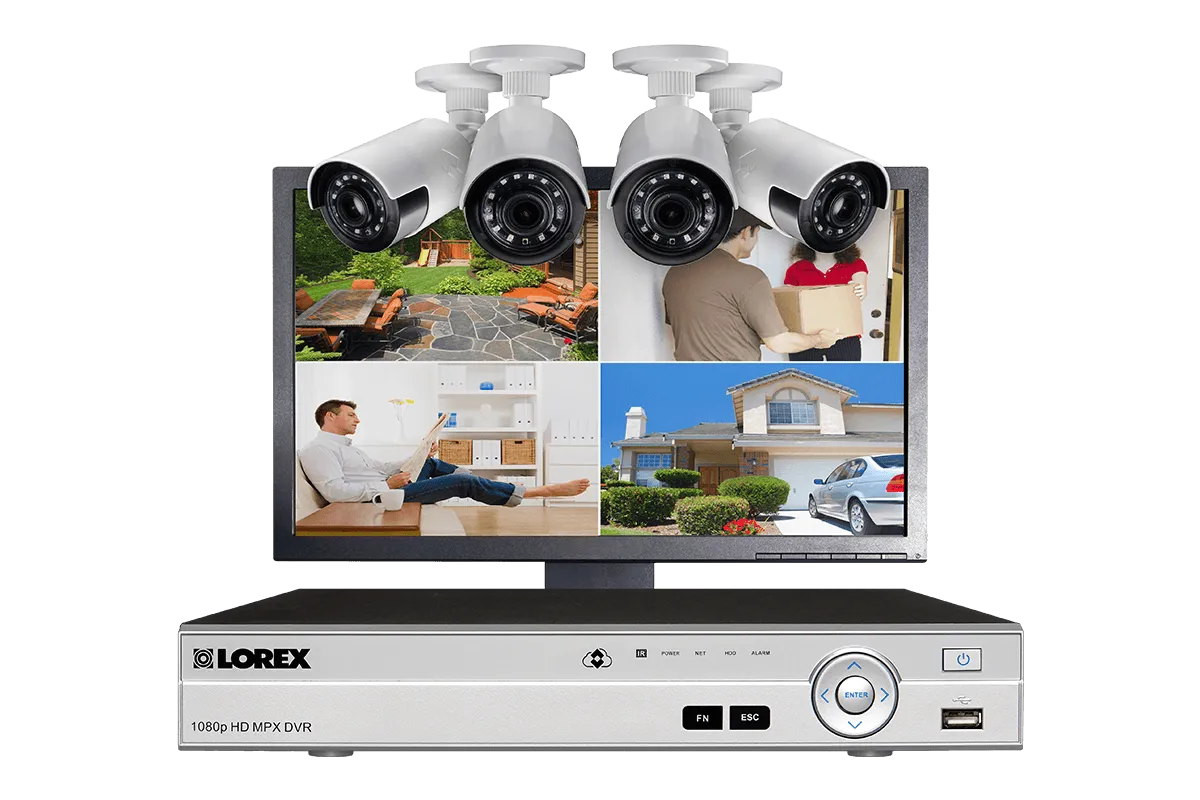

Be confident in Lorex to safeguard the things that matter most by owning a reliable and cost-effective professional surveillance solution ideal for your home. The MPX44MUW web exclusive home security system features our 4-channel DV700 HD digital video recorder (DVR). It also comes with four 1080p bullet wide-angle weatherproof security cameras, with night vision capability. This well-rounded home security system is made complete with a widescreen 19-inch LED monitor.
MPX44MUW
SPECIFICATIONS
4
CHANNELS
1080P DVR can support up to 4 cameras
4
CAMERAS
4 HD wide angle security cameras
90FT
NIGHT VISION
Maximum night vision
1TB
HARD DRIVE
Maximum capacity 1 x 4TB hard drive
Superior wide angle security cameras

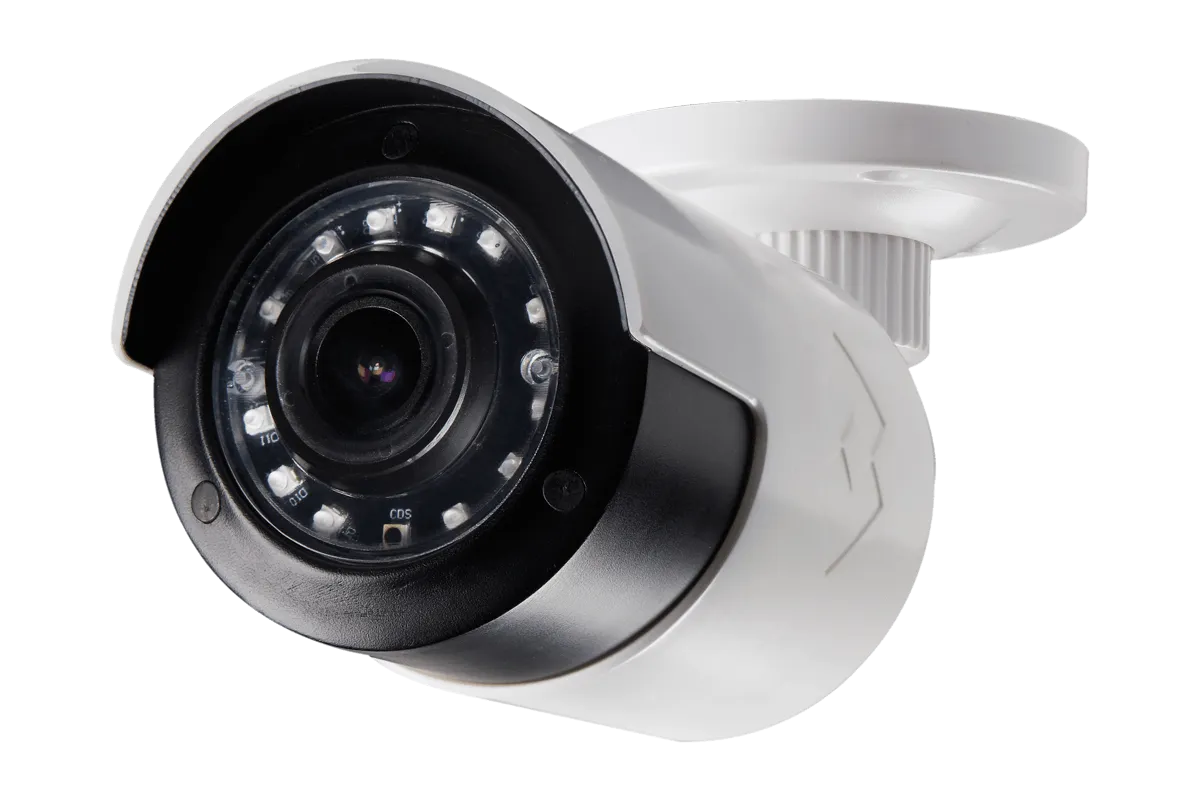

Your LBV2561UW security cameras are the perfect choice for large area or doorway monitoring. These cameras provide superior coverage thanks to their massive 160° diagonal / 120° horizontal field of view. Whether you need to monitor a large room, the street in front of your house, or a wide backyard, a single wide angle security camera can often take the place of multiple standard viewing cameras.
HD home security monitoring in 1080p
High Definition security monitoring leaves nothing in question and can be the difference in identifying important details such as facial characteristics. Receive extensive video coverage from each of the LBV2561U HD security cameras thanks to their wide 160° angle lenses. 30 frames-per-second recording produces smooth on-screen movement (in 720p mode) so your HD home security system doesn’t skip a beat.
Flexible Analog HD tecnhology
A single RG59 siamese BNC cable provides both video and power transmission, making for an easy and clutter-free set-up. Analog HD cameras such as the LBV2561U HD bullet security camera can be placed up to 800 feet away from the DVR - making them ideal for securing large properties (see documentation for complete details). The 4-channel DVR is also backwards-compatible. This unique feature allows you to use your old BNC cameras or choose from our wide range of analog BNC security cameras to expand your coverage.
Remotely connect your security system to a mobile device with Lorex Cloud™ App
The innovative and free Lorex Cloud™ app securely connects your security system to your smartphone or tablet. View live feeds (or recorded footage) of all your security cameras from wherever you are in the world. Features such as push notifications and instant email alerts for motion-triggered events will keep you connected to your property at all times.
Works With
24/7 security monitoring with reliable night vision
Trust in Lorex’s superior night vision technology to keep your property safe through the night. Cutting edge infrared (IR) LEDs within the LBV2561U security camera can see up to 90ft (27m) in ambient lighting and 60ft (18m) in total darkness. They also feature ClearNight imaging - a technology that offers superior low light operation and improves recording efficiency.

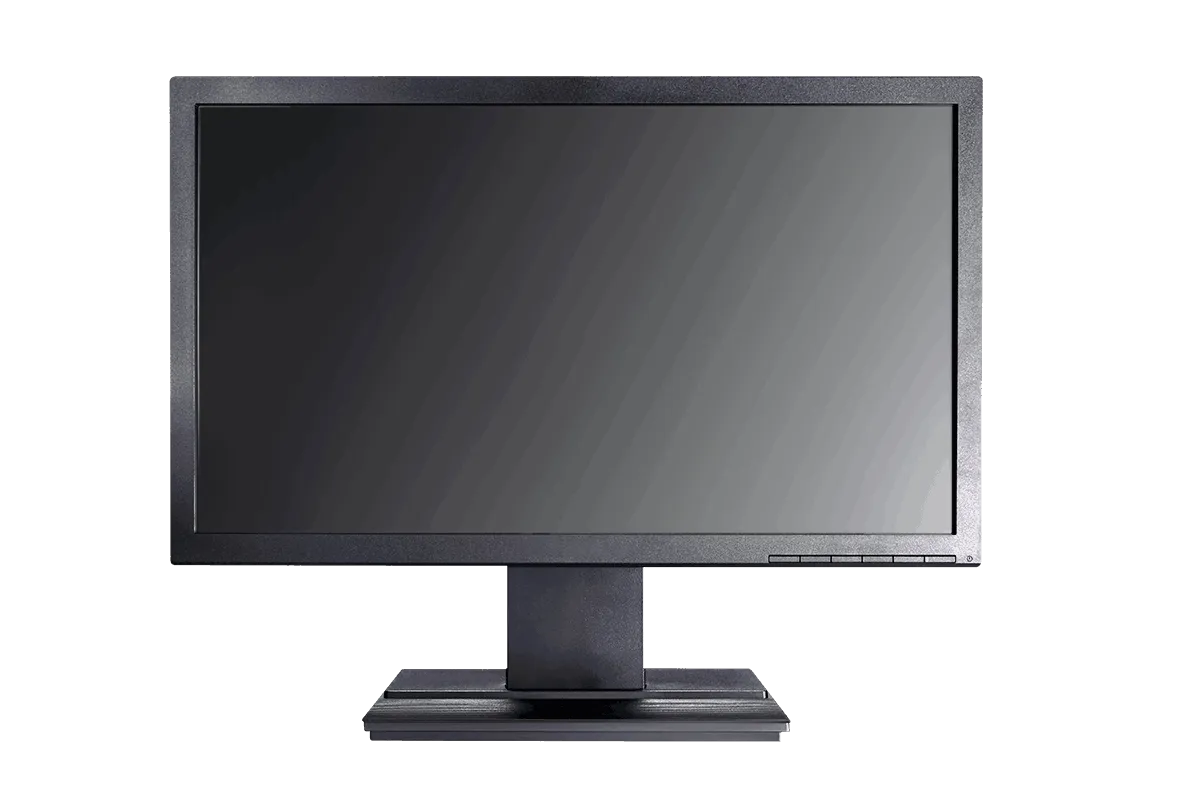

19-inch energy efficient LED monitor
Lorex’s web exclusive MPX44MUW security system comes with an energy efficient 19-inch LED monitor so you can create a handy hub to view the live feeds (or recorded footage) of your security system. Easily set-up your security station by connecting the DV700 Series DVR to the monitor with the included VGA cable.
All-season weatherproof security system

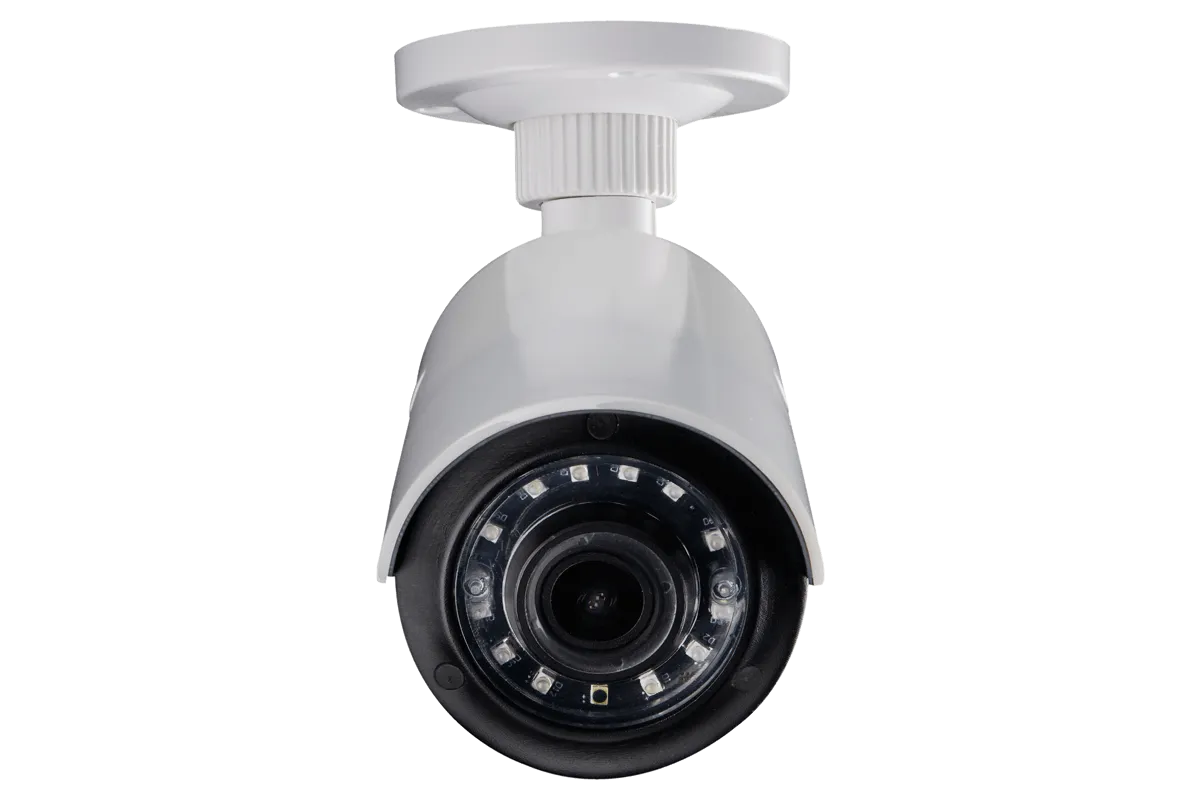

The LBV2561U HD security cameras come with versatile ceiling or wall mounting options that allow you to install them wherever you need them most -indoors or outdoors. rated, they are able to withstand the most unforgiving outdoor climates. Lightweight (yet durable) polycarbonate housing makes the LBV2561U a reliable option for all-season security that never stops working.
LBV2561U
122°F | 50°C
Heat Rating
-4°F | -20°C
Cold Rating
Professional grade security certified hard drive
The 1TB that comes with the MPX44MUW’s DVR is manufactured to cope with the high workload demands of security monitoring. It can even continue recording while you’re reviewing footage. Trust top quality performance - the hard drive can store weeks (or even months) of reliable security footage. Save recording space by adapting features such as scheduled and motion triggered recordings to fit your surveillance needs.
| Recording | Full 1080p HD (1920x1080) | 720p HD (1280x720) | Analog 1080p HD (1920x1080) | 720p HD (1280x720) |
| Platform | 1080p HD NVR systems | 720p HD NVR systems | 1080p HD DVR systems | 720p HD DVR systems |
| Video | Digital IP / RJ45 connection | Digital IP / RJ45 connection | Analog BNC / RG59 connection | Analog BNC / RG59 connection |
| Power | PoE (Power over Ethernet) | PoE (Power over Ethernet) | Standard DC power | Standard DC power |
| Installation | Connect cameras to NVR or to router/LAN | Connect cameras to NVR or to router/LAN | Cameras require wired connection to DVR | Cameras require wired connection to DVR |
