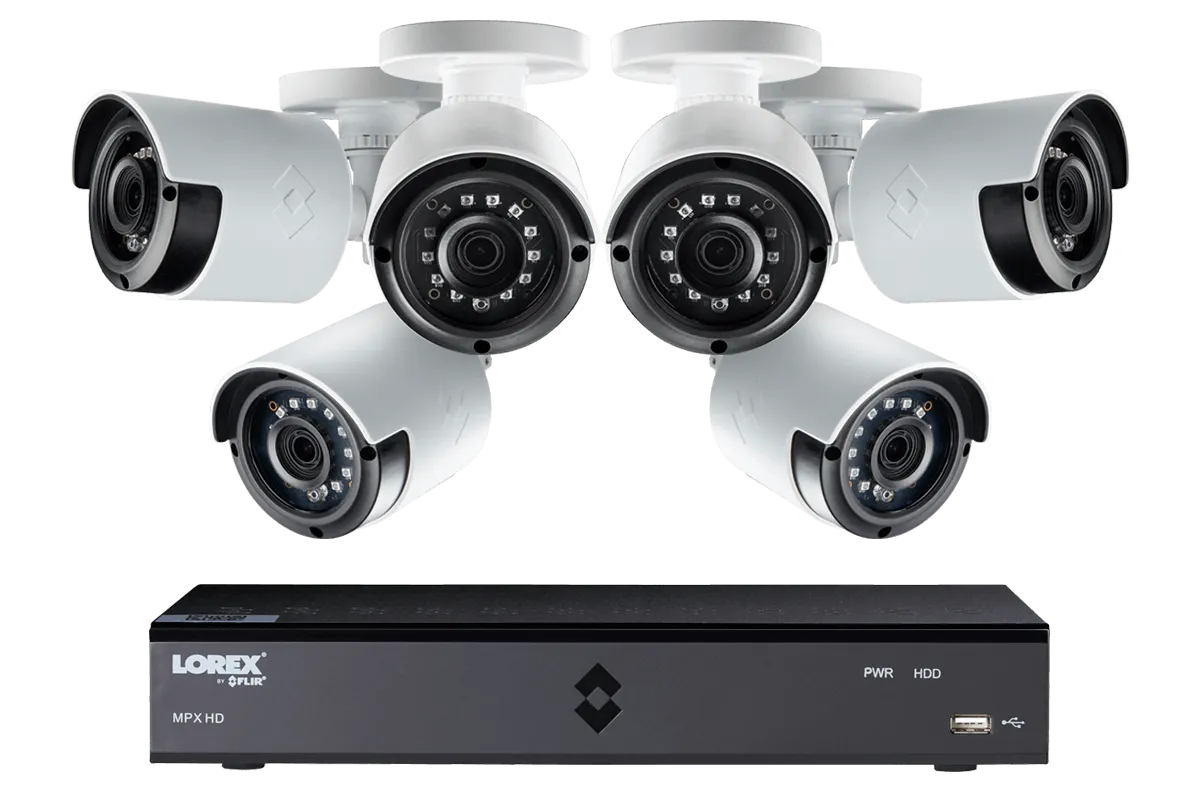

Gain that valuable peace-of-mind by owning this reliable and easy-to-install professional surveillance solution ideal for your home or small business. It features our powerful 8-channel LHA2100 Series DVR paired with six weatherproof 1080p surveillance cameras with long night vision capabilities. The included cameras and DVR are easily connected using RG59 siamese BNC cabling that provides both video and power, making for a straightforward and clutter-free setup.
LHA21081TC6PM
SPECIFICATIONS
8
CHANNELS
1080P DVR can support 8 cameras
6
CAMERAS
6 HD 1080p security cameras
130FT
NIGHT VISION
Maximum night vision range
1TB
HARD DRIVE
Maximum capacity 1 x 6TB hard drive
Works With
Lorex Cirrus™ App
1080p HD resolution

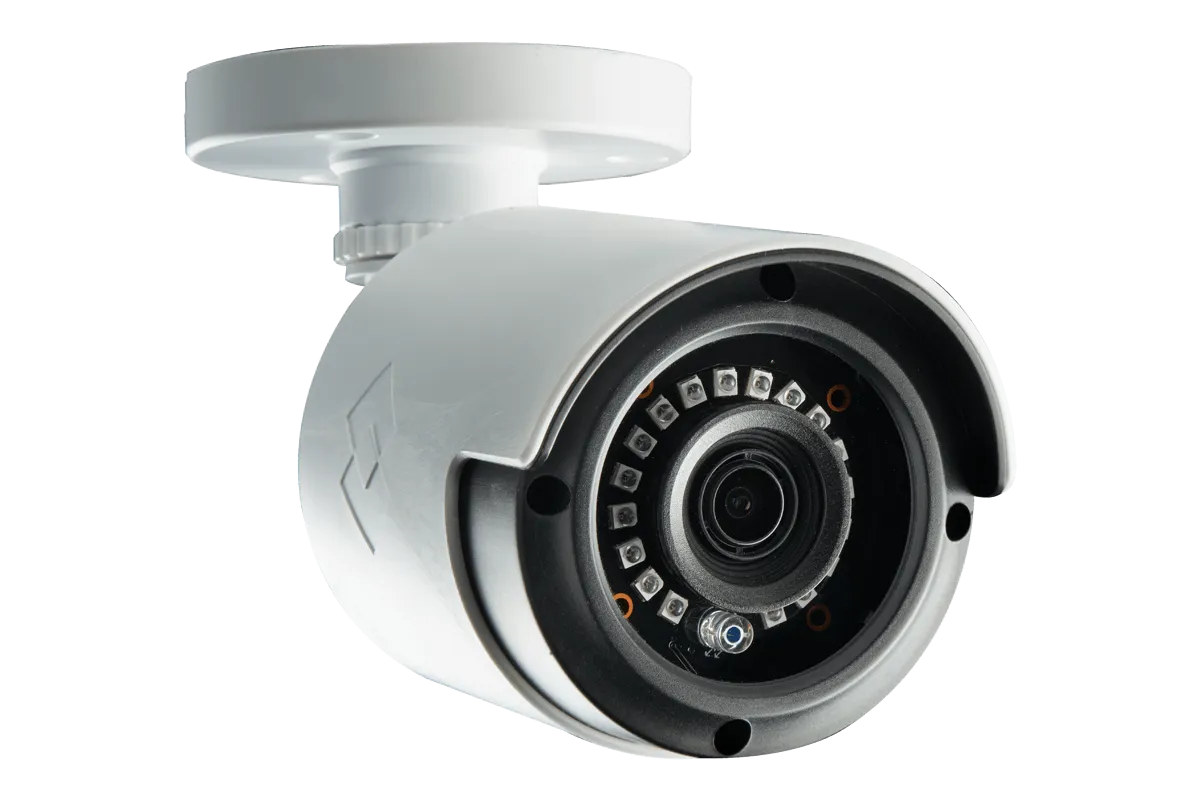

Experience the detail and clarity of stunning 1080p high definition security video. This quality of video resolution leaves nothing to question and can potentially be the difference you need to identify important details such as faces. In addition to this, you will receive extensive video coverage from each of the LAB223B surveillance cameras thanks to their wide 83° angle lenses. These cameras also use a DNR (Digital Noise Reduction) feature and ClearNight imaging for improved image quality - day and night.
HDIP or MPX?
Choosing the right security system
Easy BNC installation

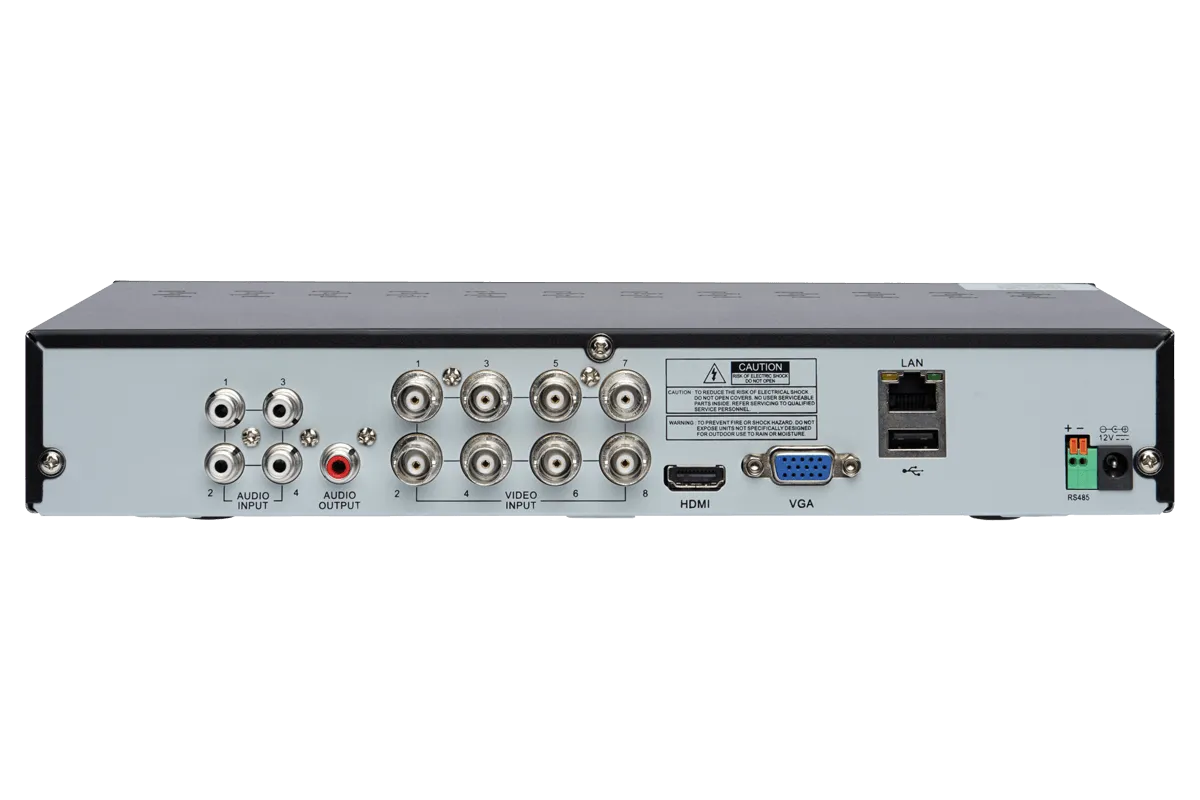

This security camera system features a simplified installation process that will have you monitoring your property in no time. Each camera only requires a single siamese BNC cable to connect to the DVR. This all-in-one RG59 coaxial cable provides both video transmission and power up to 300ft. This means that the camera can be plugged in near the DVR, rather than having to find a plug near the camera. A single run of RG59 coaxial cable can extend the video signal up to 800ft / 242m for larger properties (the camera will need to be plugged in directly at this distance).
Lorex Cirrus keeps you connected
Our free Lorex Cirrus™ app makes your surveillance system accessible from most mobile devices. With this app, you will be able to see exactly what your cameras see at any time, review recorded footage, and keep track of all motion activity using easy-to-navigate timelines. You can also customize motion-activated push notifications to be sent directly to your phone or tablet's home screen so you can always be in the know.
Lorex web client available
Lorex Client 13 gives you access to your security system and its settings over the Internet using a PC or Mac computer. With this software, you will be able to view live and recorded video, as well as save manual recordings and snapshots to your computer's hard drive. The software is available under the downloads section below.
All day - All night monitoring

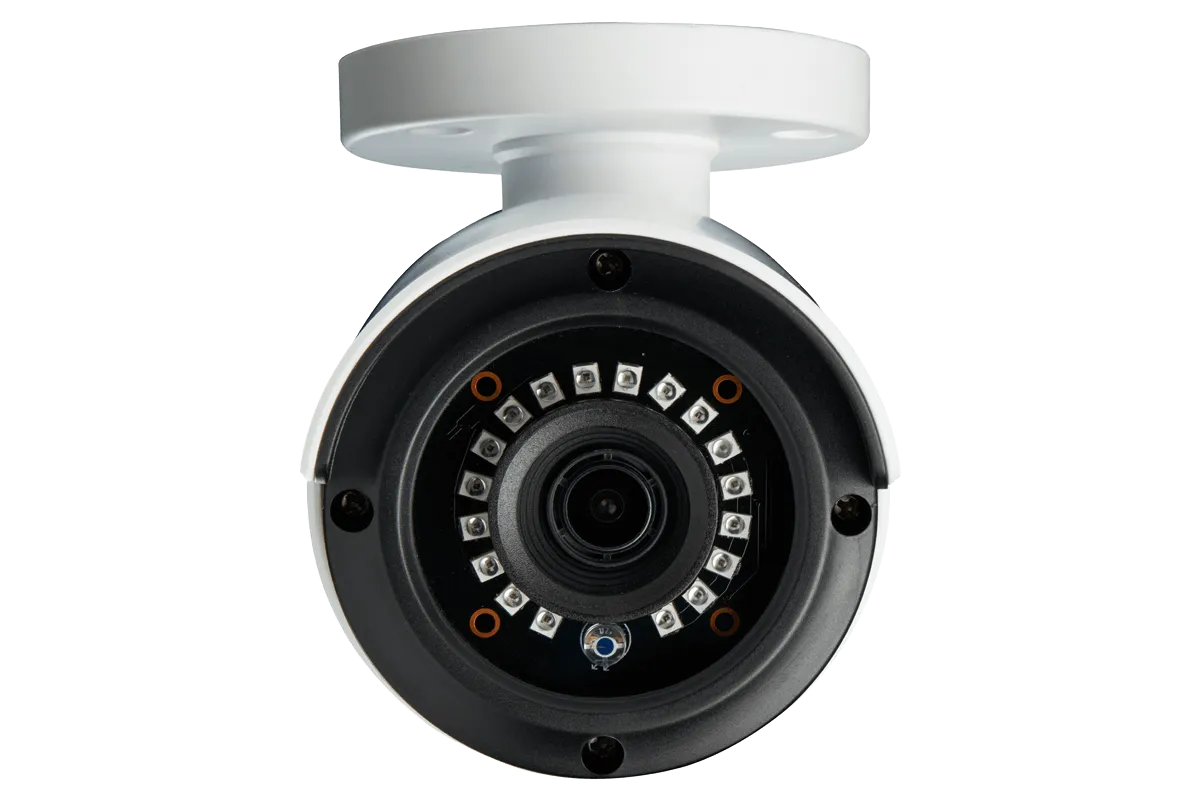

Lorex’s superior night vision technology will help keep you and your property safe through the night. Cutting edge infrared (IR) LEDs provide excellent performance in the dark, allowing you to clearly see up to 130ft / 40m in ambient lighting (up to 90ft / 28m in total darkness). These cameras also feature SmartIR technology, which ensures close-up objects or people are not over-exposed from the infrared lights.
Indoor or Outdoor - it makes no difference

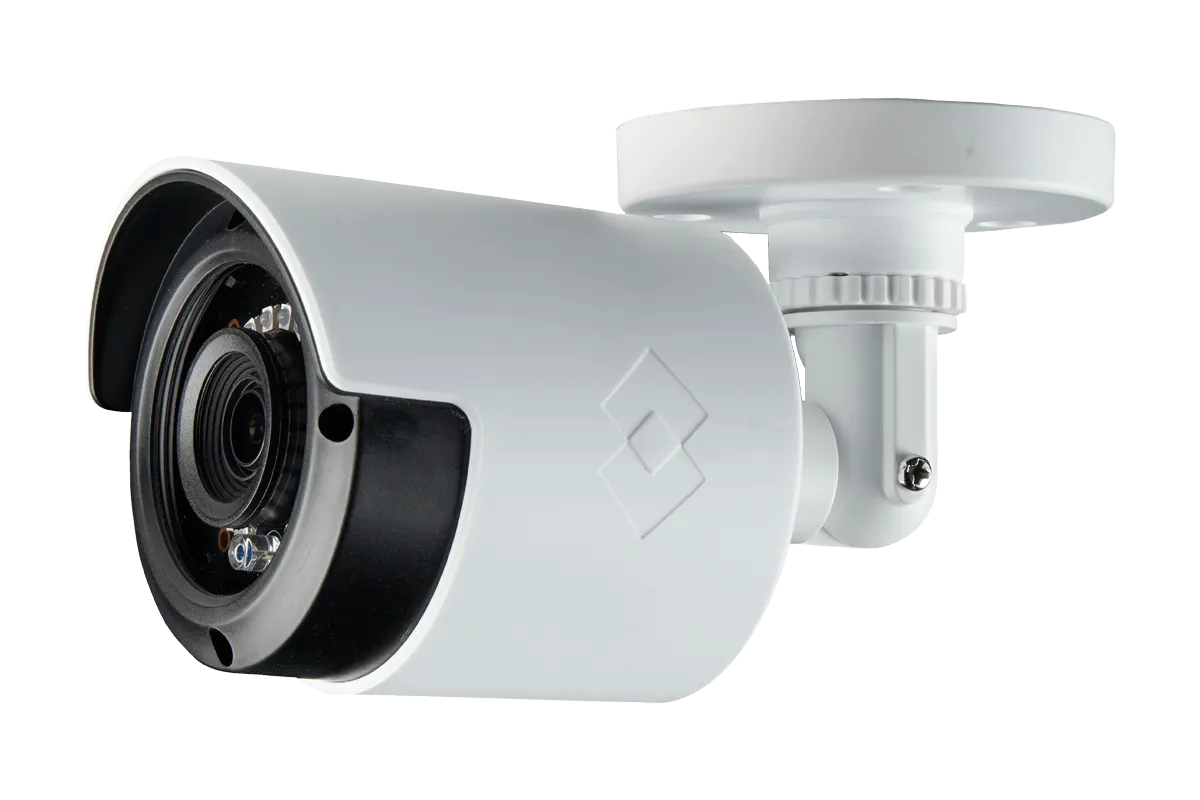

With an weatherproof rating, the surveillance cameras in this system are suitable for both indoor and outdoor installation. Versatile ceiling or wall mounting options allow them to be placed wherever you need them most. They are able to withstand the most unforgiving climates - your cameras will even continue to operate in extreme temperatures as low as -22°F (-30°C) and as high as 140°F (60°C).
LAB223B
140°F | 60°C
Heat Rating
-22°F | -30°C
Cold Rating
Reliable hard drive for maximum protection
The 8 channel version of this DVR includes a 1TB hard drive. This is not your regular hard drive, however. It is engineered to keep up with the demands of continuous surveillance monitoring. It can store days, weeks, or even months of security footage depending on your settings. DVR options, such as recording at a lower resolution, scheduled recording times, and motion-triggered recording, can save you storage space and extend your recording time.
| Recording | Full 1080p HD (1920x1080) | 720p HD (1280x720) | Analog 1080p HD (1920x1080) | 720p HD (1280x720) |
| Platform | 1080p HD NVR systems | 720p HD NVR systems | 1080p HD DVR systems | 720p HD DVR systems |
| Video | Digital IP / RJ45 connection | Digital IP / RJ45 connection | Analog BNC / RG59 connection | Analog BNC / RG59 connection |
| Power | PoE (Power over Ethernet) | PoE (Power over Ethernet) | Standard DC power | Standard DC power |
| Installation | Connect cameras to NVR or to router/LAN | Connect cameras to NVR or to router/LAN | Cameras require wired connection to DVR | Cameras require wired connection to DVR |
