Product Details
＋
E860-DTU(2020-400SL)A Switching Signal relay module wireless transmission remote control remote synchronous transmission acquisition feedback
[Communication interface]：RS485
[Transmission distance]：10km
[Working voltage]： AC 85～265V
[Installation method]：guide rail installation
[Product size]： 108*87.5*65mm
[Product weight]：194g±5g

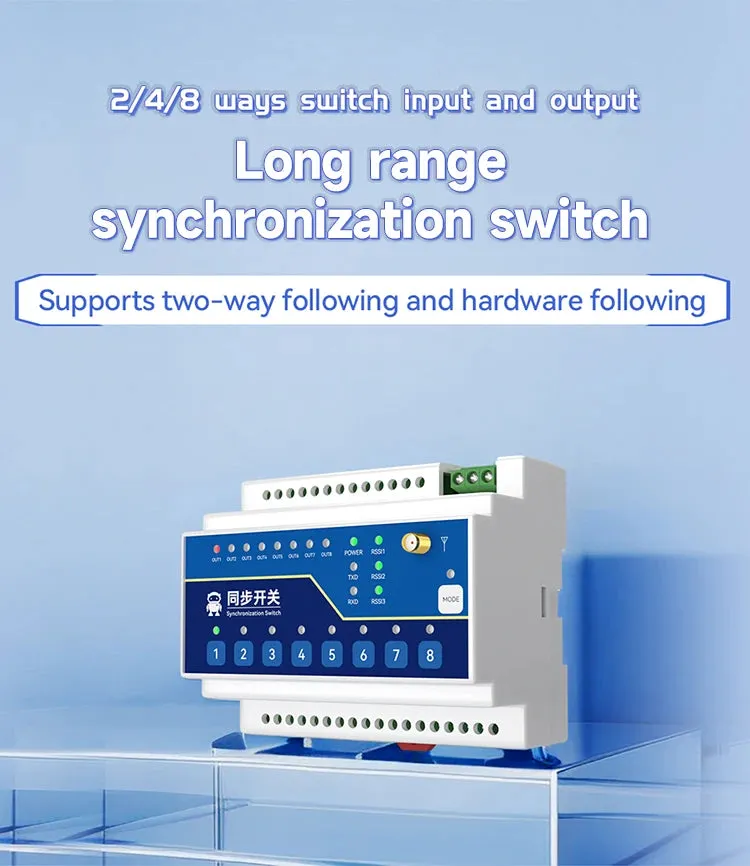

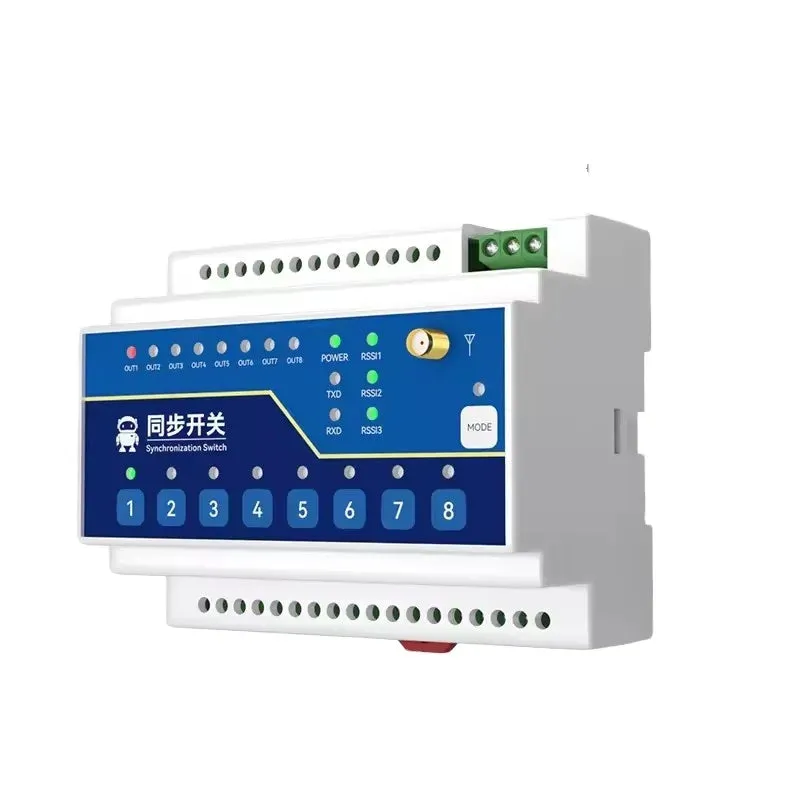

[Introduction]：E860-DTU(2020-400SL)A wireless remote synchronization switch is a terminal device that realizes remote transmission of switching signal through LoRa modulation technology. It supports 2 channels of switching input (DI) and 2 channels of control relay output (DO). The core of its function is to realize remote synchronous control without wiring, and is highly easy to use, allowing users to quickly integrate it into their own systems.
| Category | Name | Parameters |
| power supply | Operating Voltage | AC 85～265V |
| Power indicator | Green LED indication | |
| Wireless parameters | Working frequency | 410.125-493.125MHz (supports ISM band) |
| Transmit power | 30dBm (maximum power about 1W) | |
| Receive sensitivity | [email protected] | |
| Transmission distance | 10 kilometers (clear and open environment, maximum power, antenna gain 5 dBi, height 2m) | |
| channel | Dip switch, configurable 32 communication channels | |
| airspeed | Distance first (default), balanced mode, response first | |
| Antenna options | SMA antenna base (external screw inner hole) | |
| DI input | Number of DI channels | Route 2/4/8 (optional) |
| input type | Dry contact/NPN type | |
| Input instructions | Green LED indicator | |
| DO output | DO number of ways | Route 2/4/8 (optional) |
| DO output type | Type A relay | |
| DO output mode | Jog mode, self-locking mode | |
| Relay contact capacity | 7A 30VDC、7A 250VAC | |
| Output instructions | Red LED indicator | |
| Power consumption | Emission current consumption | 290mA @ DC 12V |
| average current consumption | 70mA @ DC 12V | |
| Current consumption of relay all the way | 15mA @ DC 12V | |
| other | Product Size | 108mm * 87.5mm * 65mm (length * width * height) |
| product weight | 194g±5g | |
| Working temperature and humidity | -40～ 85℃, 5%～95%RH (no condensation) | |
| Storage temperature and humidity | -60～ 125℃, 5%～95%RH (no condensation) | |
| Installation method | Standard 35mm rail mounting |
