Description

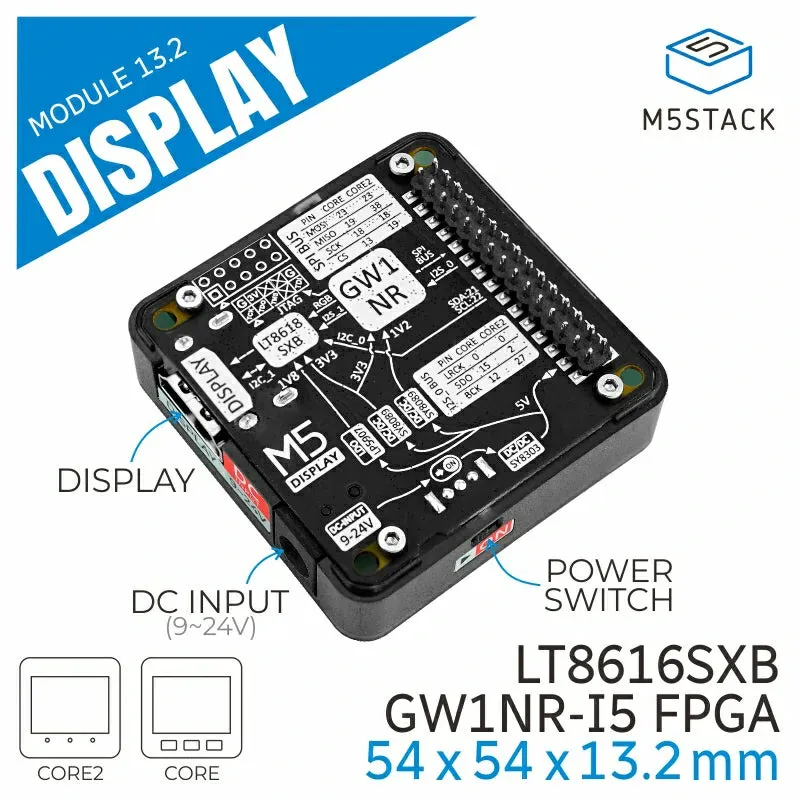

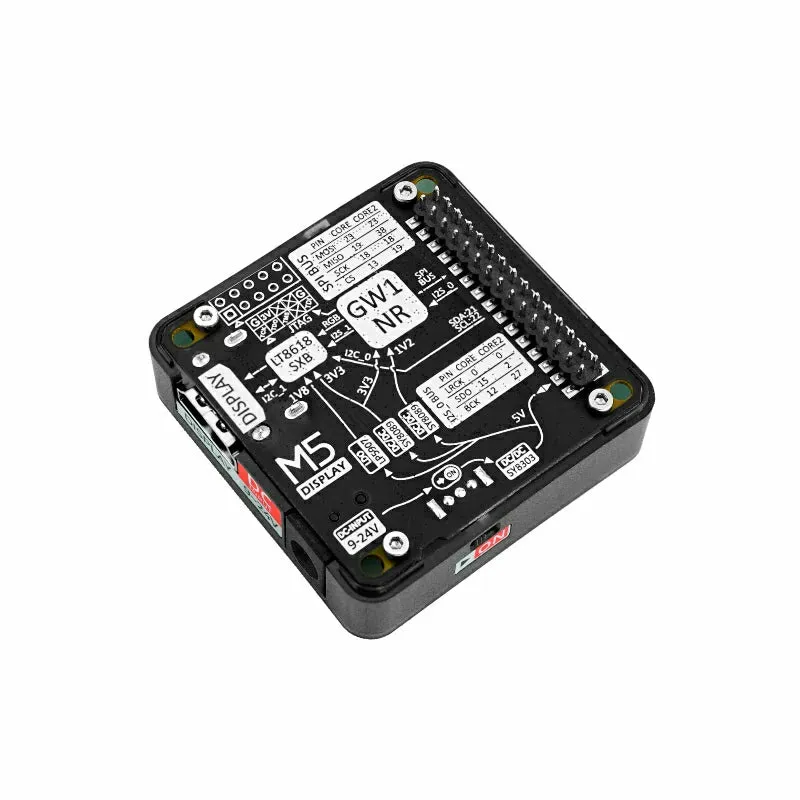

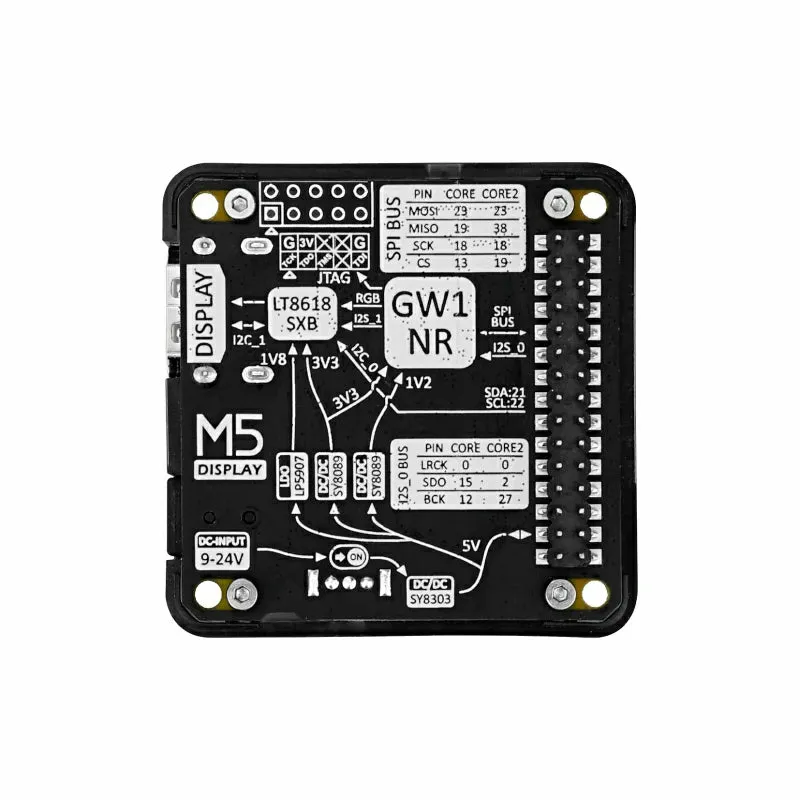

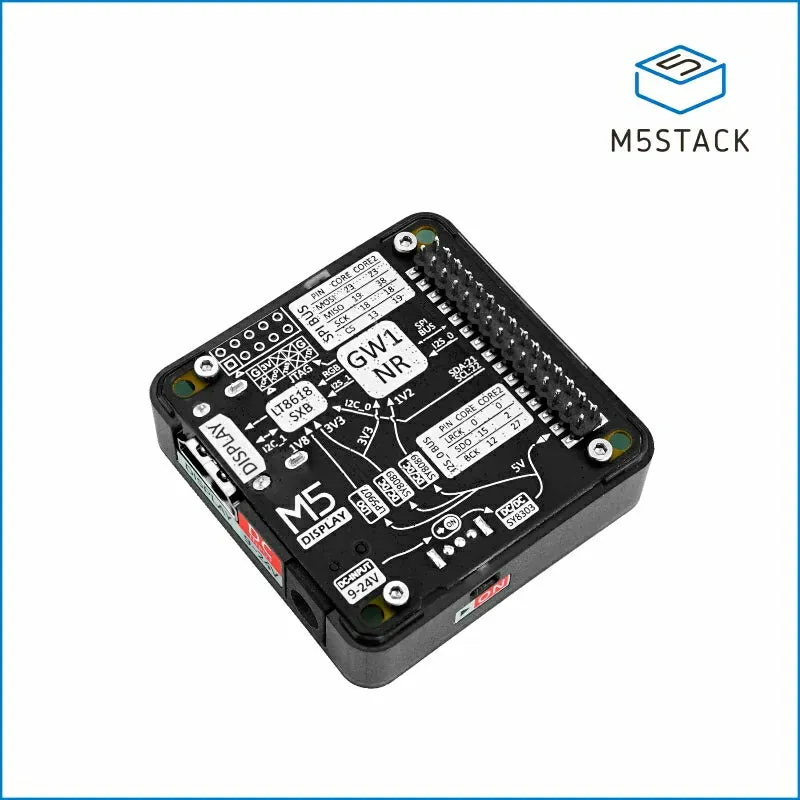

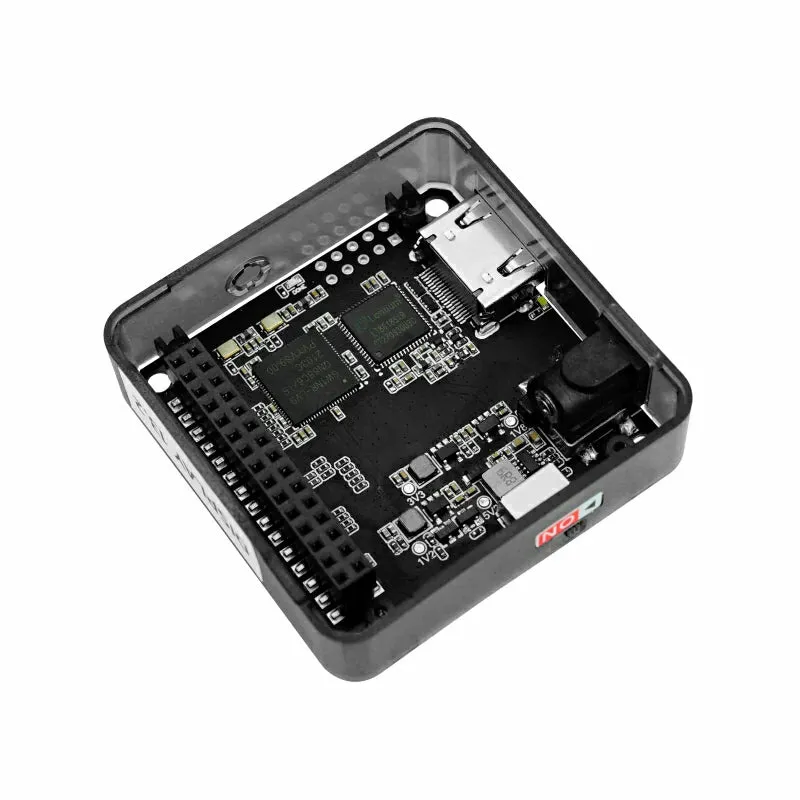

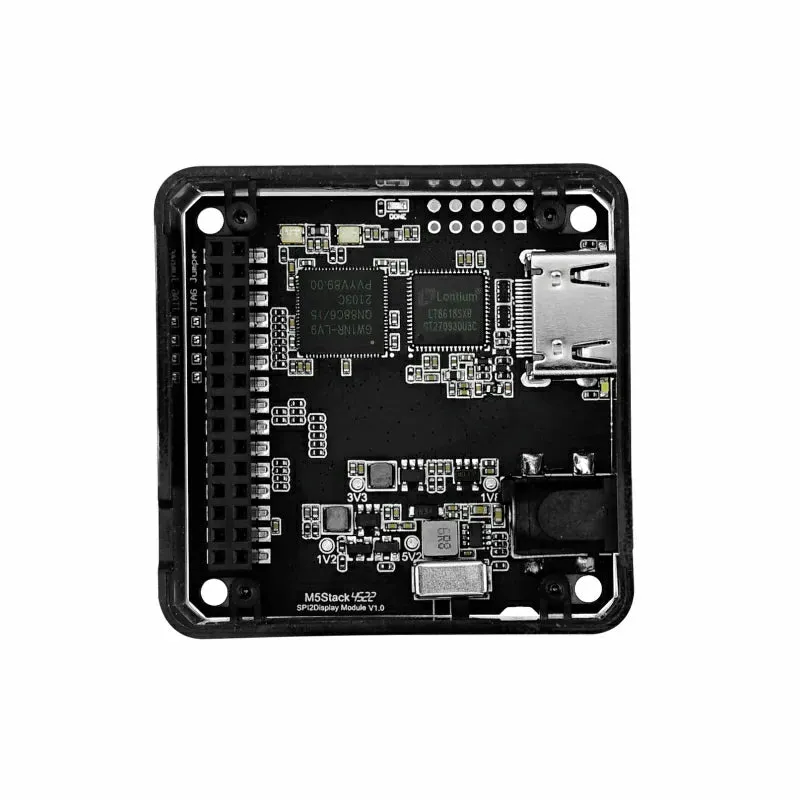

Display Module 13.2is an expansion module forHD audio and video, using GAOYUN GW1NR series FPGA chipto outputDisplay signal, and usingLT8618S chipas signal output conditioning, which can achieve24-bit color depth Display signalandup to 8-channel audio signaloutput, resolution up to 1080P, of which FPGA internally realizes I2S audio generation function. The module contains DC power input socketand correspondingDC-DC circuit, which can realize the power supply of the whole machine. This product is suitable for various programmable HD AV outputand other occasions.

Features

Supports 24-bit RGB input
Resolution up to 1080P
Supports up to 8 channels of audio input
Includes 9-24V to 5V, 3.3V and 1.2V DCDC circuits and 5V to 1.8V LDO circuits
HD audio and video interface, JTAG download interface
9-24V DC power interface
Power switch

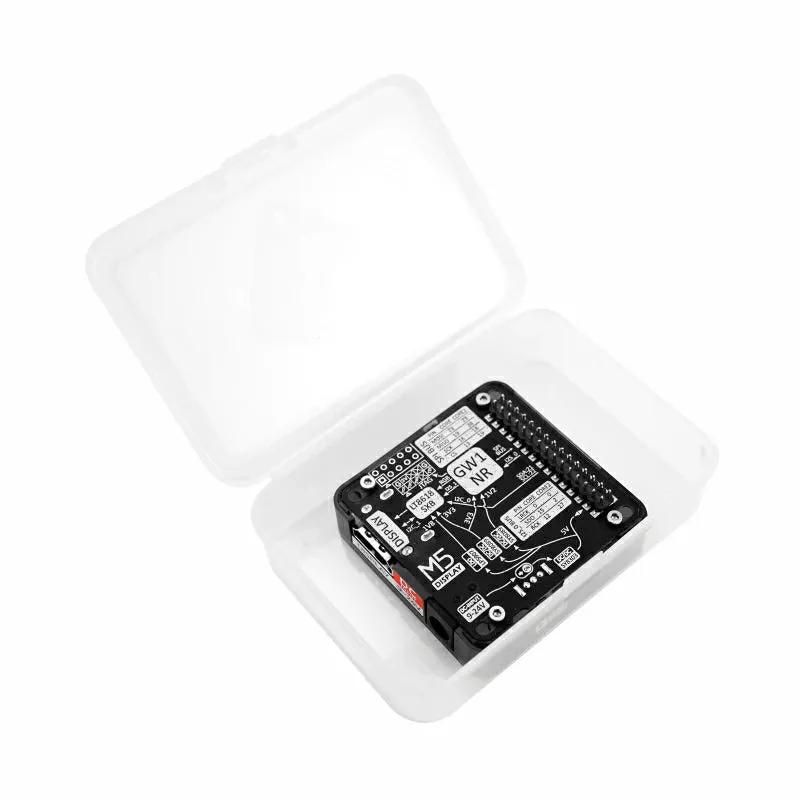

Includes

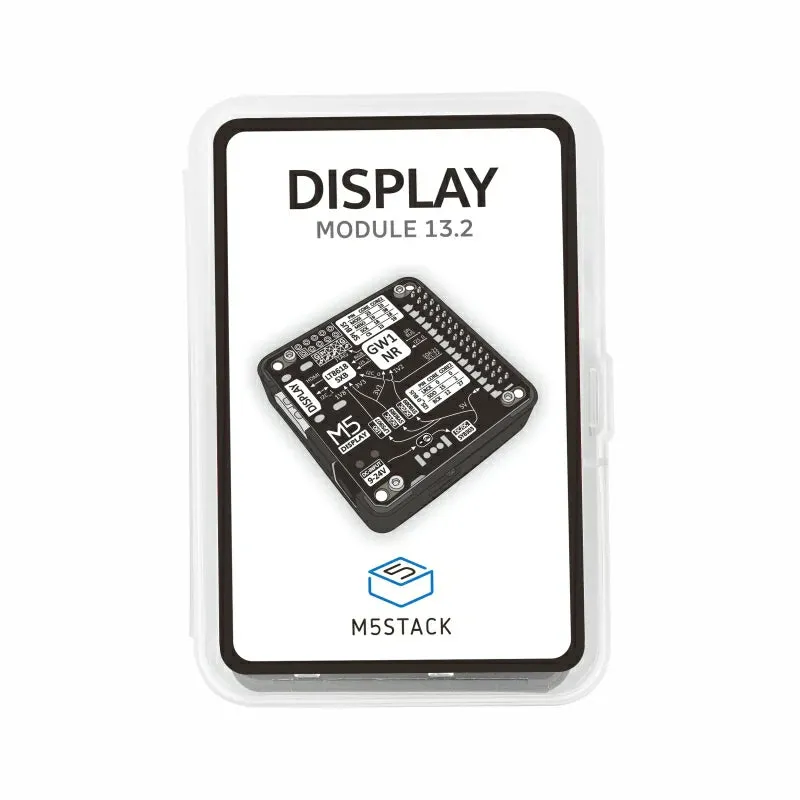

1x Display Module 13.2

Applications

Output HD audio and video signals
Human-machine interaction

Specification

Resources	Parameters
Audio and video signal acquisition chip	GW1NR-LV9QN88C6-I5 FPGA
Audio and video signal processing chip	LT8616SXB
9-24V to 5V DCDC buck chip	SY8303
5V to 3.3V and 1.2V DCDC buck chips	SY8089
5V to 1.8V LDO buck chip	LP5907
Resolution	MAXIMUM 1080P (1920x1080)
The power supply	9-24V
Product Size	54mm × 54mm × 14.2mm
Package Size	93mm × 63mm × 25mm
Product Weight	21.6g
Package Weight	41.2g
