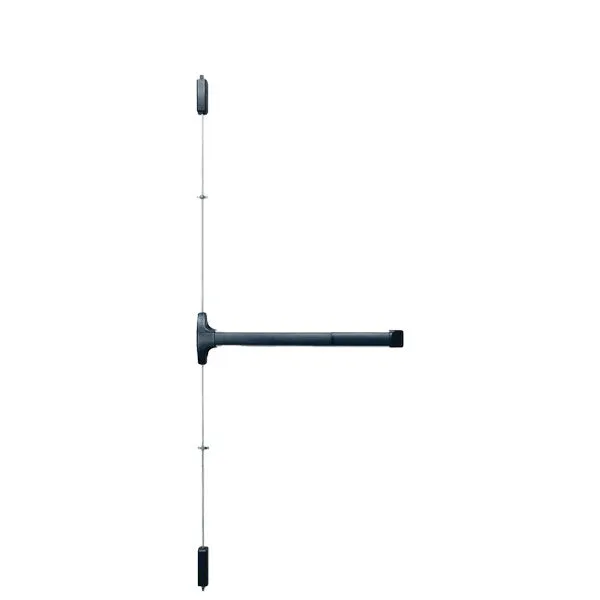

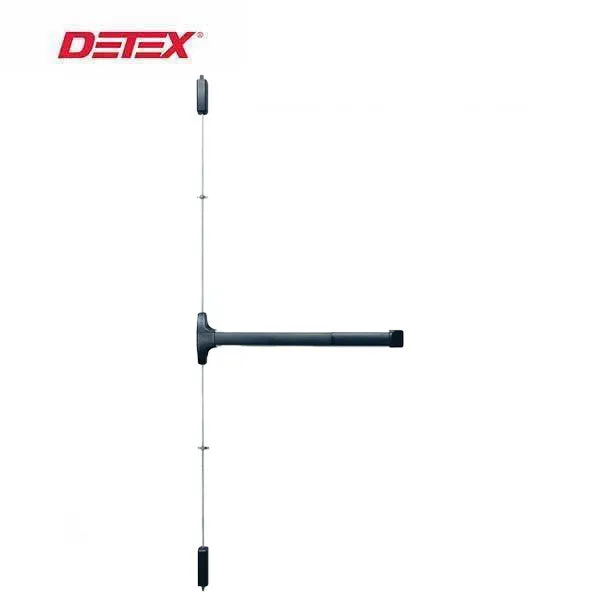

The V50 Surface Vertical Rod device is a heavy-duty panic and fire exit hardware at an economical price designed for use on all types of single and double doors without a mullion. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.
Features:
- Exit Alarm with 9-volt Battery (EB)
- Weatherized Exit Alarm (EBxW)
- Electric Dogging (ED)
- Delayed Egress (EE)
- Exit Alarm Hardwired 24VDC (EH)
- Hardwired 24VAC/DC Exit Alarm with Remote Signal (EHxR)
- Electric Integration (EI)
- Delayed Egress with Magnetic Lock (EM)
- Electric Latch Retraction (ER)
Specifications:
Door Width | 36" |
Door Height | 84" |
Door Thickness | 1-3/4" |
Top Latch | Stainless steel 3/4" |
Bottom Drop Bolt | 5/8" diameter |
Handing | Non-Handed |
Strike Top | Surface non-roller |
Strike Bottom | Non-dust proof |
Push Bar | 3-1/8" (2-3/8" when depressed) |
Fire Rated | Non-Rated |
Finish | Satin Black Anodized Aluminum |
Certifications | BAA Compliant UL listed, ANSI/BHMA certified A156.3 |
Manufacturer Warranty | 10 Year Mechanical/3 Year Electrical Limited Manufacturer's Warranty |
Door Stile | Fits 3-1/2" stile doors |
