Product Details
＋

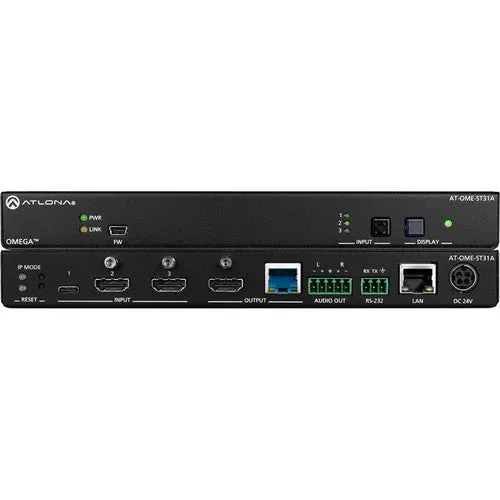

The Atlona AT-OME-ST31 and AT-OME-ST31A are 3×1 switchers and HDBaseT transmitters designed for remote powering, with HDMI and USB-C inputs. The OME-ST31 features analog audio embedding to replace the HDMI or USB-C input audio, while the OME-ST31A features two-channel audio de-embedding to an analog balanced audio output. Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-ST31 features mirrored HDMI and HDBaseT outputs and is HDCP 2.2 compliant. The USB-C input is ideal for AV interfacing with newer Mac®, Chromebook™, and Windows® PCs, as well as smartphones and tablets. Video signals up to 4K/60 4:2:0, plus embedded audio, control, and Ethernet can be transmitted over HDBaseT up to 330 feet (100 meters). All inputs and the local HDMI output support 4K HDR and 4K/60 4:4:4 at HDMI data rates up to 18 Gbps. Additionally, 4K downscaling to 1080p @ 60, 30, or 24 Hz is available for the HDMI output when connected to an HD sink. The OME-
PRODUCT HIGHLIGHTS
- Switch between sources by using this audio video switchbox without degradation of video quality and eliminate the need to manually switch cables between sources
- A great solution for connecting display
- Switch between 3 sources to a single display
- 4096 x 2160 resolution for high-quality video delivery
- 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling on local ports (HDMI and USB-C)
- Selectable 4K to 1080p downscaling
- Automatic input selection and automatic display control
- Available with audio embedding (OME-ST31) or de-embedding (OME-ST31A)
| GENERAL INFORMATION | |
| Manufacturer | Atlona Technologies |
| Manufacturer Part Number | AT-OME-ST31A |
| Manufacturer Website Address | |
| Brand Name | Atlona |
| Product Line | Omega |
| Product Model | OME-ST31A |
| Product Name | Three-Input Switcher for HDMI and USB-C |
| Product Type | Audio/Video Switchbox |
| TECHNICAL INFORMATION | |
| Connectivity Technology | Cable |
| Number of Input Devices Supported | 3 |
| Device Supported | Display |
| Number of Displays Supported | 1 |
| VIDEO | |
| Graphics Modes | 4K |
| Maximum Video Resolution | 4096 x 2160 |
| INTERFACES/PORTS | |
| HDMI In | Yes |
| HDMI Out | Yes |
| Connectivity (RJ-45) | Yes |
| Number of Connectivity (RJ-45) Ports | 2 |
| Number of USB Ports | 2 |
| Number of HDMI Inputs | 2 |
| Number of HDMI Outputs | 1 |
| MEDIA & PERFORMANCE | |
| Media Type Supported | Twisted Pair |
| Maximum Operating Distance | 330 ft |
| MISCELLANEOUS | |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| ITEM DETAILS | |
| Model Number | AT-OME-ST31A |
| Brand | Atlona |
| Category | Signal Distribution/Switchers/Matrix Switchers |
| Mfr ID | ATLONA |
| UPS Shippable | Y |
| Shipping Weight | 2.6 |
| UPC Code | 846352006198 |
