An HDBaseT Receiver for 4K and Collaboration.
4K upscaling and downscaling.
Seamlessly incorporate 4K and HD into any system.
Built-in USB hub and extender.
Simple USB integration for software video conferencing.
Display control and automation.
Effortless system operation with no user intervention.

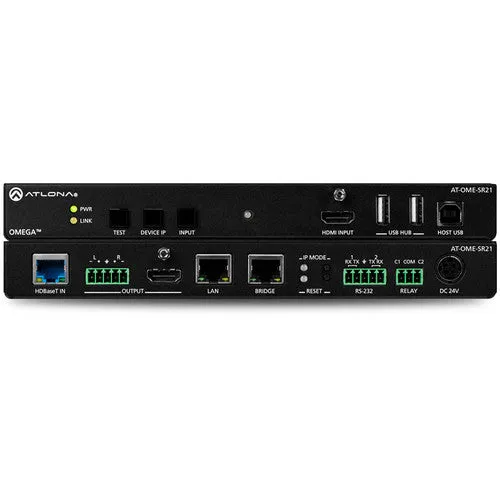

The Atlona AT-OME-SR21 is an HDBaseT receiver and 4K/UHD scaler with a local HDMI input. Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-SR21 receives HDBaseT for video, control, Ethernet, and USB.
Additional Features
Local HDMI input included
This HDBaseT receiver includes an additional HDMI input - a convenience whenever there's a PC or wireless collaboration gateway to be installed near the display.
Two-port network switch
This is a simple but integration-friendly feature that lets you interface IP control between an AV LAN (or control processor), the display, and an upstream AV switcher over HDBaseT.
Audio de-embedding
The OME-SR21 features analog balanced stereo output, for de-embedding two-channel audio from any source and delivering to a sound system. A five-band EQ is included to fine-tune the audio.
Internal test patterns
Three internally generated test patterns are available to facilitate display setup, validate system performance, and provide a quick signal source for troubleshooting cabling or display issues.
PRODUCT HIGHLIGHTS
- Connectivity Technology: Wired
- Number of Output Devices Supported: 1
- Maximum Operating Distance: 328.08 ft
- Graphics Modes: 4K
- Maximum Video Resolution: 4096 x 2160
- Network (RJ-45): Yes
- HDMI In: Yes
- HDMI Out: Yes
- USB: Yes
- Number of Network (RJ-45) Ports: 3
- Number of USB Ports: 3
- Number of HDMI Inputs: 1
- Number of HDMI Outputs: 1
- Media Type Supported: Twisted Pair
- Twisted Pair Cable Standard: Category 7
- Receiver Height: 1.02"
- Receiver Width: 8.62"
- Receiver Depth: 5.98"
- Receiver Weight (Approximate): 1.96 lb
| GENERAL INFORMATION | |
| Manufacturer | Atlona Technologies |
| Manufacturer Part Number | AT-OME-SR21 |
| Manufacturer Website Address | |
| Brand Name | Atlona |
| Product Line | Omega |
| Product Model | OME-SR21 |
| Product Name | Scaler for HDBaseT and HDMI with USB |
| Product Type | Video Extender Receiver |
| TECHNICAL INFORMATION | |
| Connectivity Technology | Wired |
| Number of Output Devices Supported | 1 |
| Maximum Operating Distance | 328.08 ft |
| VIDEO | |
| Graphics Modes | 4K |
| Maximum Video Resolution | 4096 x 2160 |
| INTERFACES/PORTS | |
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| HDMI Out | Yes |
| USB | Yes |
| Number of Network (RJ-45) Ports | 3 |
| Number of USB Ports | 3 |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| MEDIA & PERFORMANCE | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 7 |
| PHYSICAL CHARACTERISTICS | |
| Receiver Height | 1.02" |
| Receiver Width | 8.62" |
| Receiver Depth | 5.98" |
| Receiver Weight (Approximate) | 1.96 lb |
| ITEM DETAILS | |
| Model Number | AT-OME-SR21 |
| Brand | Atlona |
| Category | Signal Distribution/UTP Extension |
| Mfr ID | ATLONA |
| UPS Shippable | Y |
| Shipping Weight | 0.1 |
| UPC Code | 846352006020 |
