About Auxbeam Switch Panel Installation Video
AS-400:
AS-600:
★ Upgraded Functions:
✔ RGB Backlight - Unlimited color options match dash lighting and vehicle
✔ 3 Mode Setting - Toggle/Momentary/Pulsed
✔ Bluetooth APP Control - Access to accessories no matter whether you are in the vehicle
✔ Upgraded Wireless Remote Control - Equipped with a strong magnet, allowing it to be easily adsorbed onto iron metal surfaces, making it very convenient to use. Includes two button batteries for easy replacement, with an IP65 waterproof rating
✔ Manual Backlit Off - Turn off the backlight when it's daytime or when it's not necessary
✔ Group Setting - Set up a group via APP to control 2 or more lights at the same time
✔ DIY Switch Panel & Remote Control - Use the provied 60pcs labels to indicate what's connected to that switch& remote control
Features:

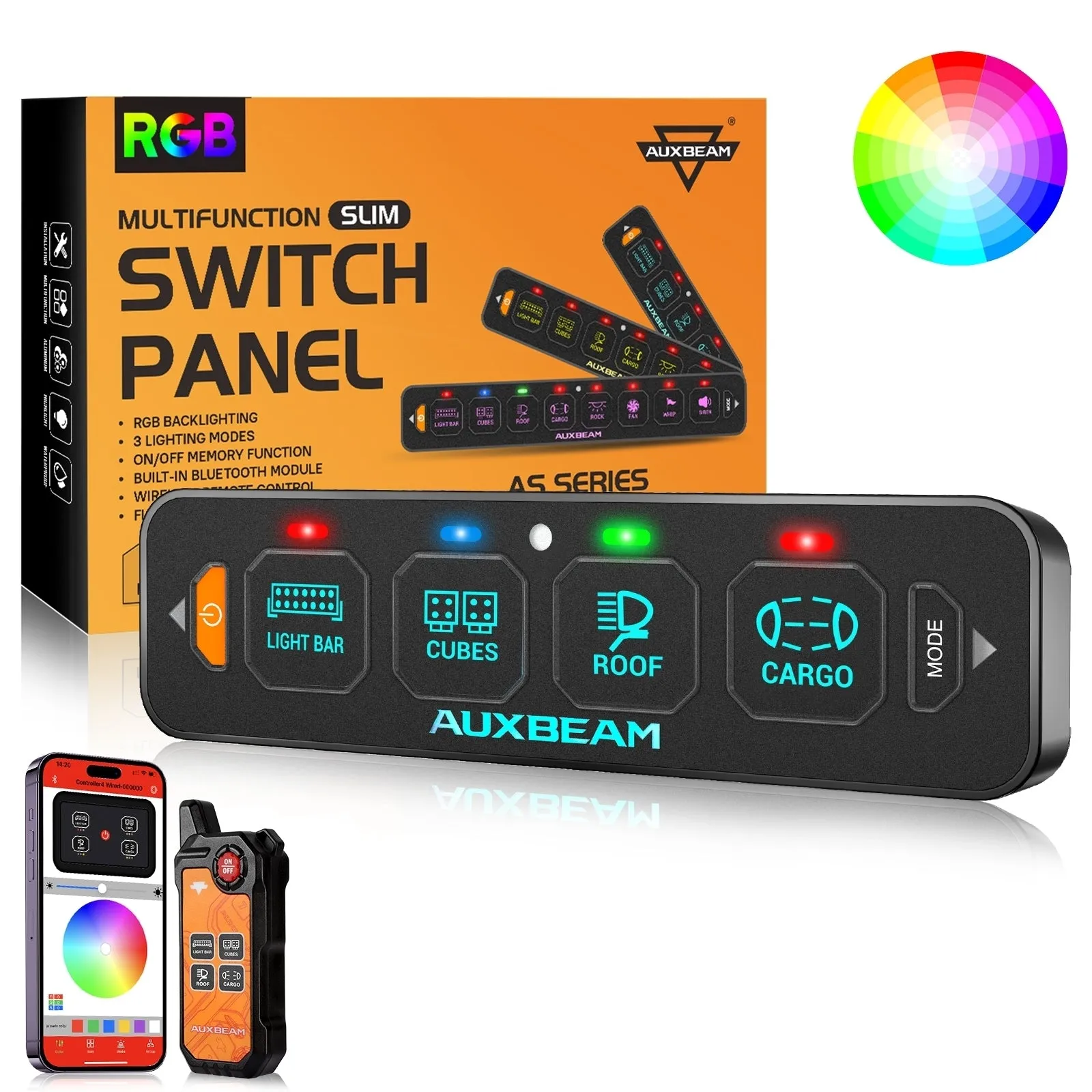

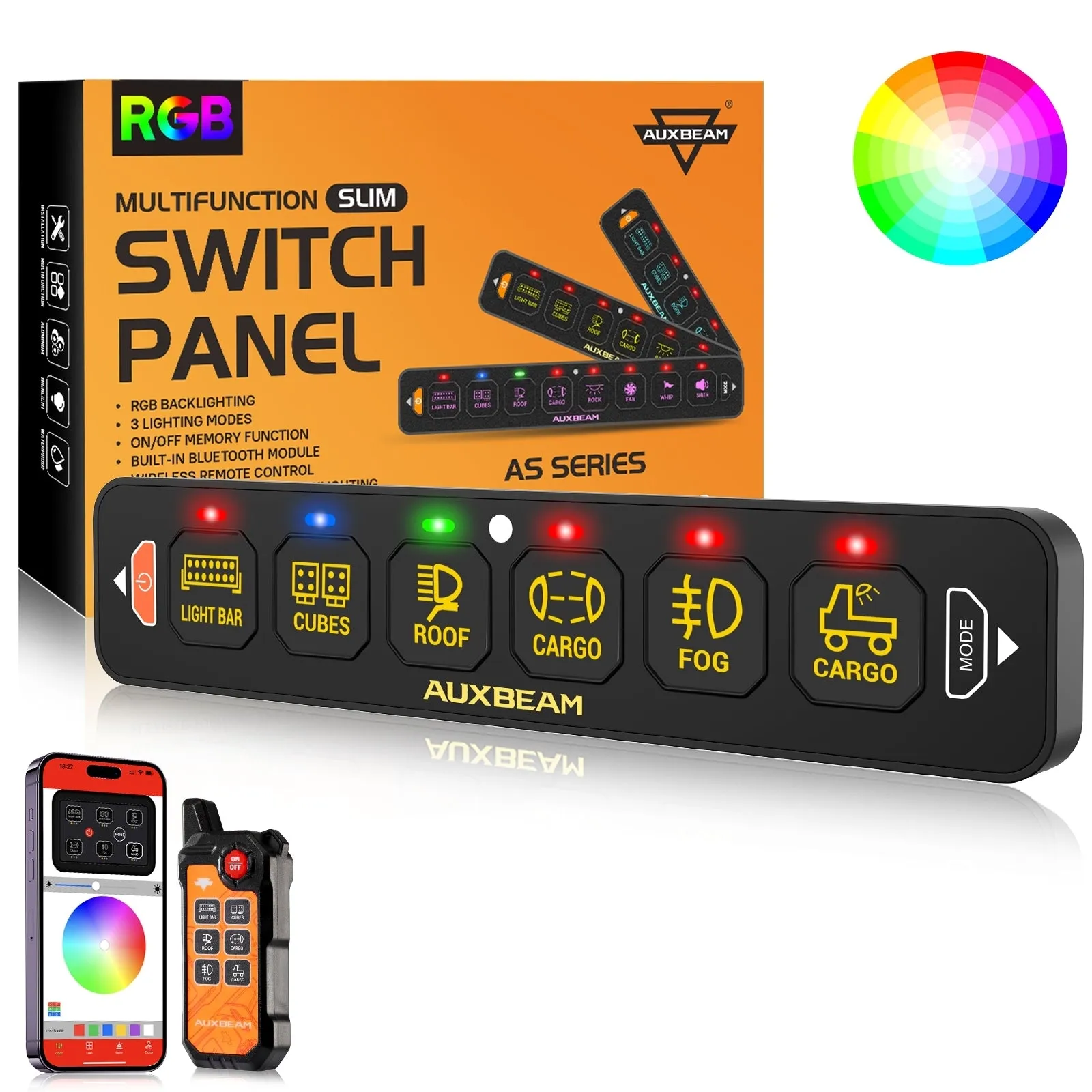

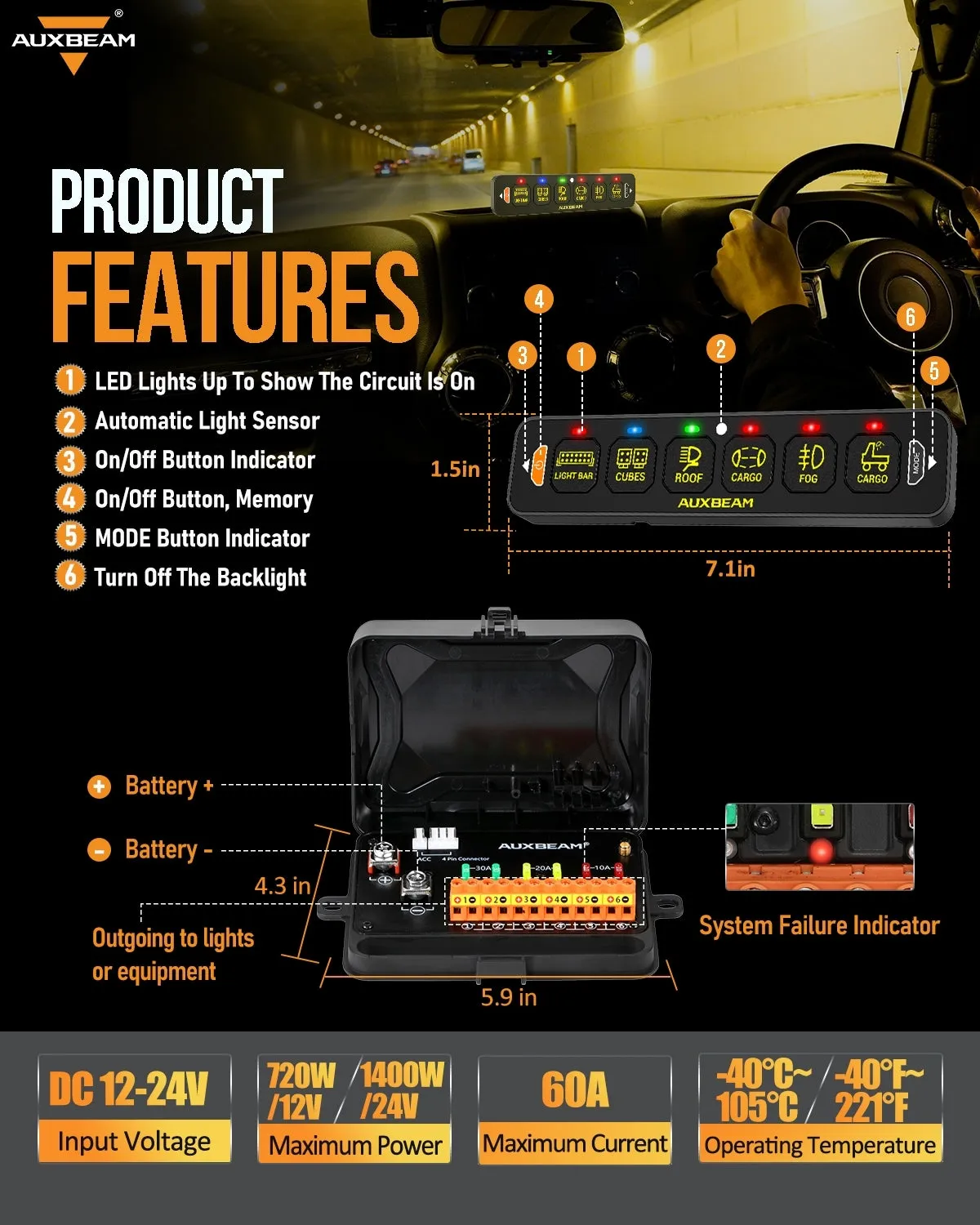

▶AS Series RGB Switch Panel

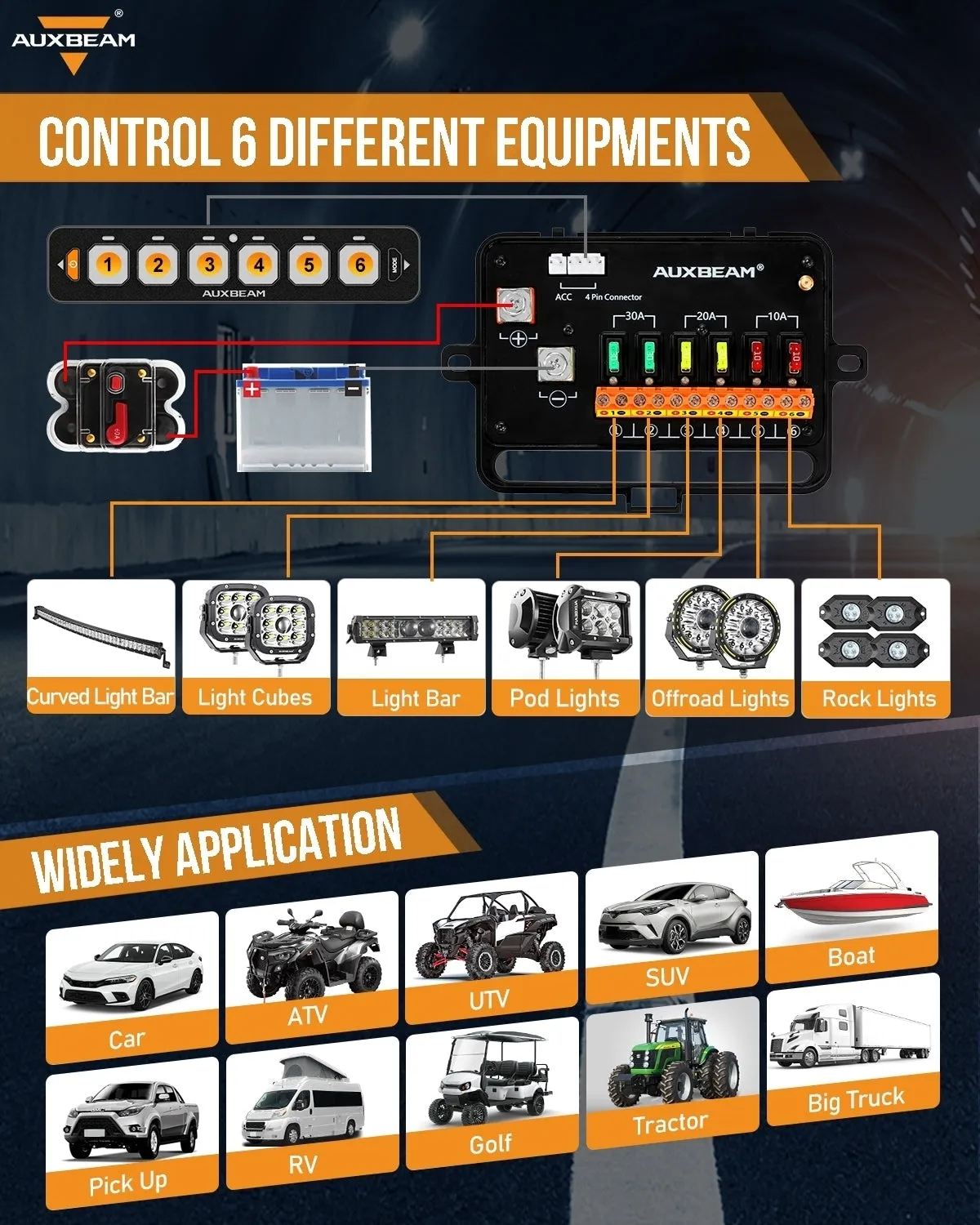

- 4/6-Gang one-sided outlet switch panel. It allows you to control up to 4/6 different LED lights or devices. Command all your vehicle accessories by the tap of your finger.

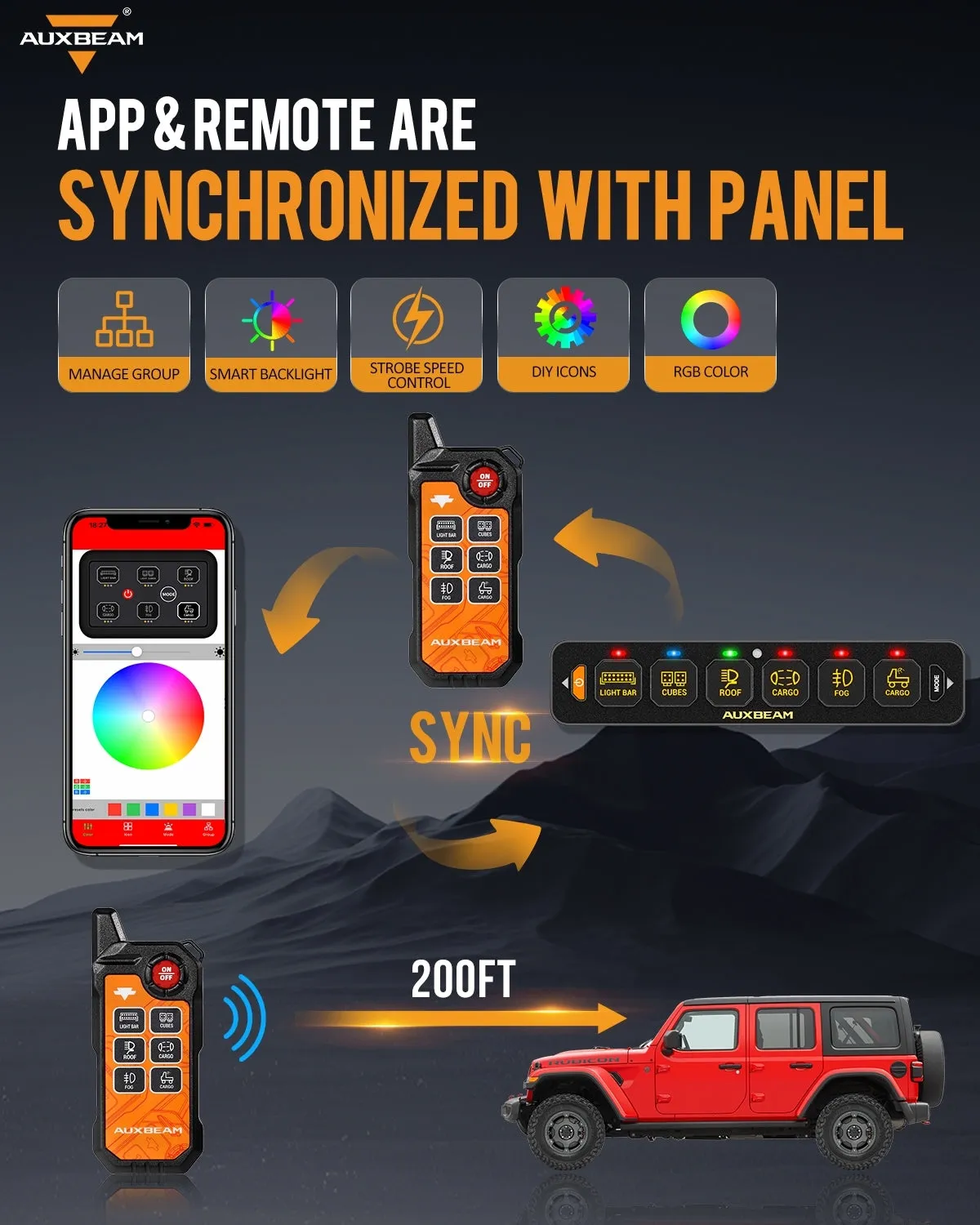

- 3 control methods - Switch panel & Bluetooth APP&Remote Control, work synchronously. Built-in Bluetooth module allows you to program and control the system anytime & anywhere.The wireless remote control has a connection range of up to 165ft/50m.
- 3 modes setting. Each switch has 3 kinds of light status, different indicator status represents different working modes.
● RED-Toggle, Constant light mode (Great for things like fog lights or driving).
● BLUE-Momentary, Press & hold the button to turn on, then release the button to turn off, just like pressing the horn button.
● GREEN-Pulsed, Flash mode. Press the switch once and the device will flash on/flash off, continuing until the switch is pressed again.
- RGB backlight color. Adjust backlight color and brightness to match your vehicle.
- Backlight brightness automatic dimmable. Automatic adjustment according to the brightness variation of the environment.
- Assign each switch a logo (60 universal stickers to choose from). Use the provided switch labels to indicate what’s connected to that switch.
- DIY button icon on APP. 200 default icons or use your own photos from the phone album.
- Setup group. Manage multiple accessories in your custom groups. Assign 2 or more accessories to the same switch button and then control them at the same time.
- Universal fitment. Widely use for Truck, Boat, Car, Bus, Off-road, Powersports, Marine, ATV, UTV, SUV, Side by Side, SxS, Heavy-duty machines, etc.
- Waterproof IP65, high sensitivity, stability and strong anti-interference ability.
- Safety protection. Built-in resettable fuse, reverse polarity protection, over-voltage protection, and over-current protection. The fuse adapter makes it easy to connect the control box to the vehicle's fuse box without cutting, splicing or damaging the original wiring in the vehicle.
- Easy Installation. No complicated wiring, no need to cut a big hole in your vehicle. Plug & play wiring harness can connect the LED lights or accessories easily.

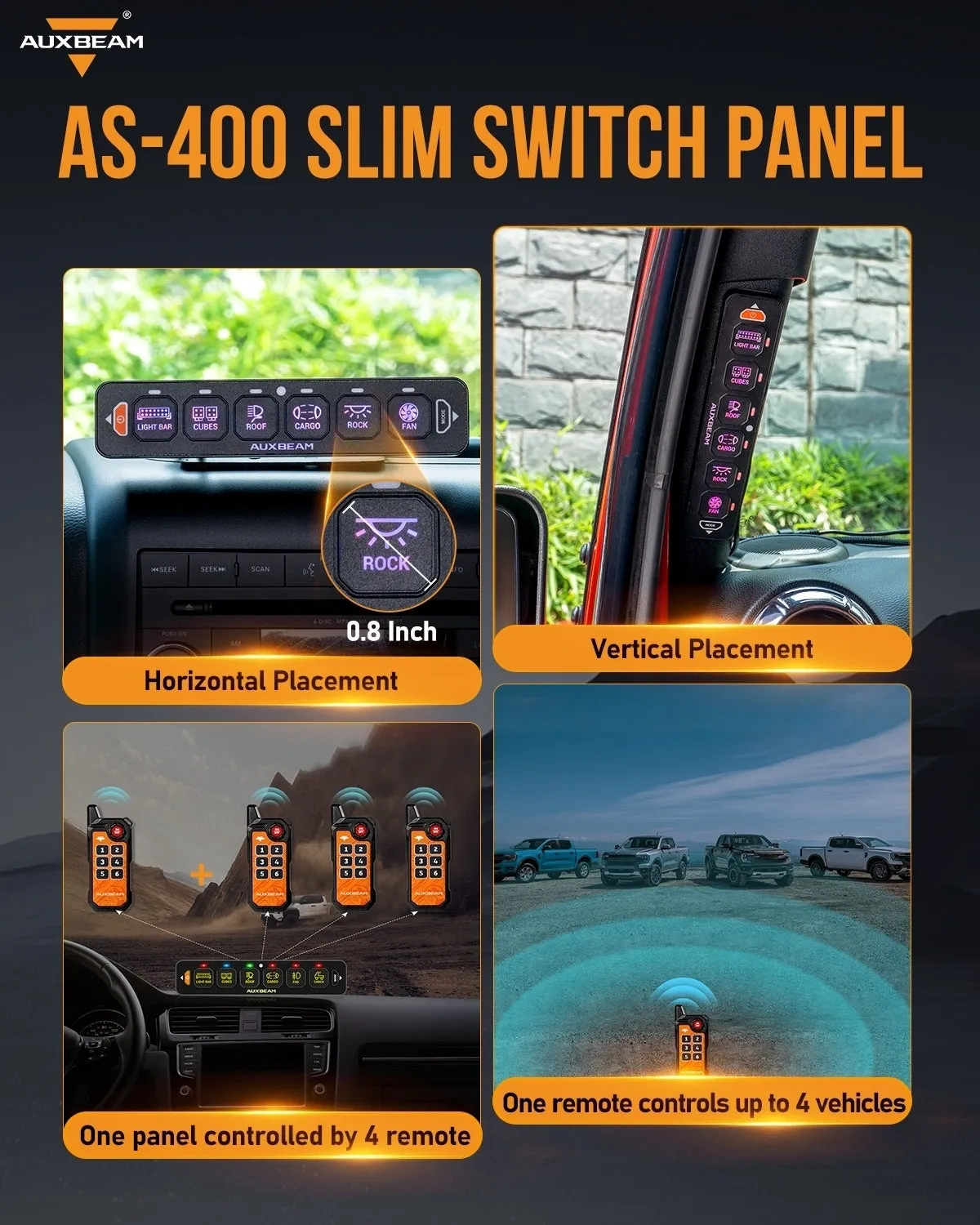

- With 2 types of mounting brackets, you can mount the panel in the best location for your vehicle, such as the dash panel, center console, overhead sunglasses holder, etc.

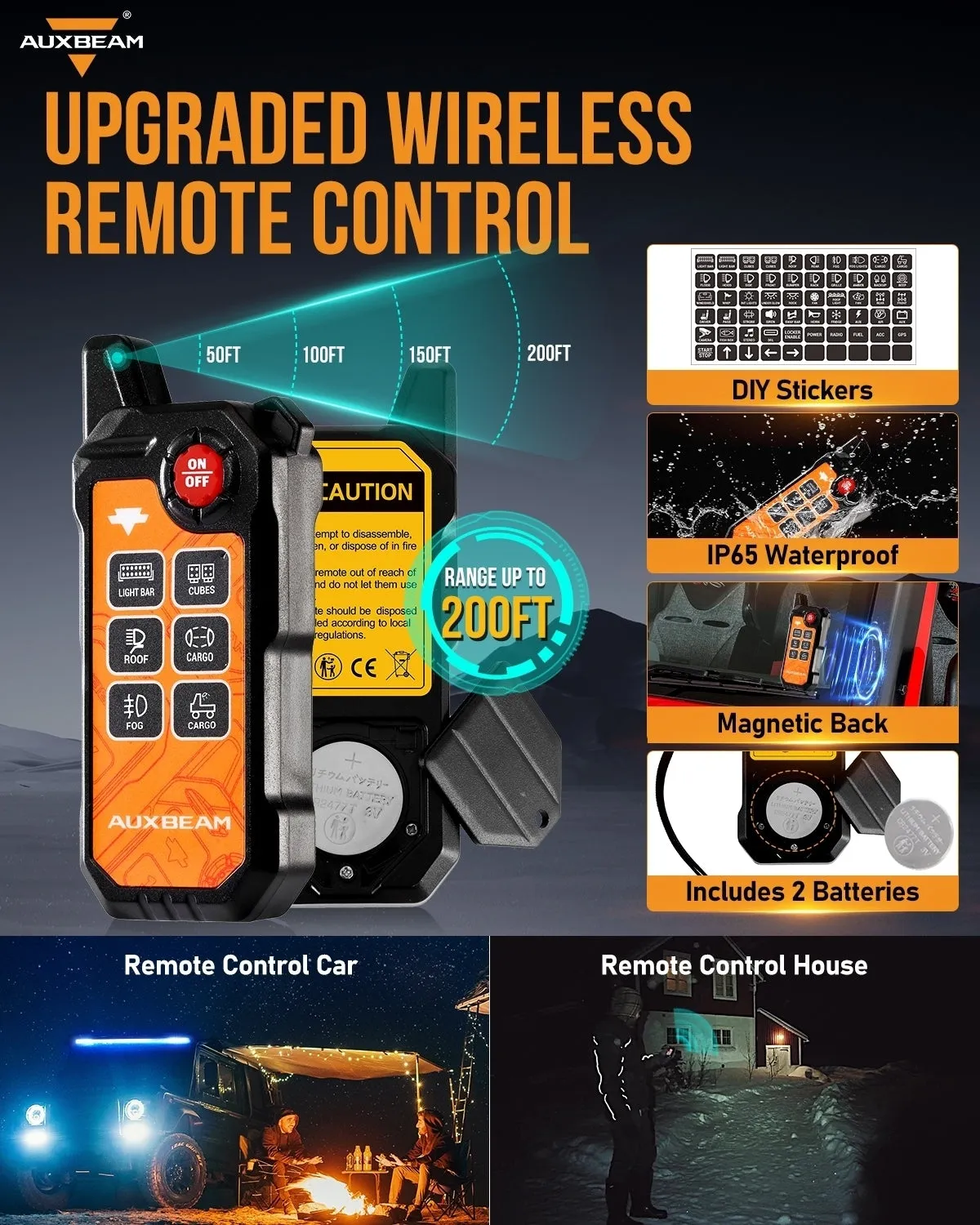

▶Upgraded Wireless Remote Control
- Advanced thermal protection and overload protection design makes the load work safely.
- The back of the product has a magnetic backplate, which can be easily hung on any metal and can be placed and picked up at any time.
- Ultra-low latency, 433 signal frequency, no other equipment interference control to block the signal
- The wireless remote control has a connection range of up to 200 feet.
- Replaceable battery

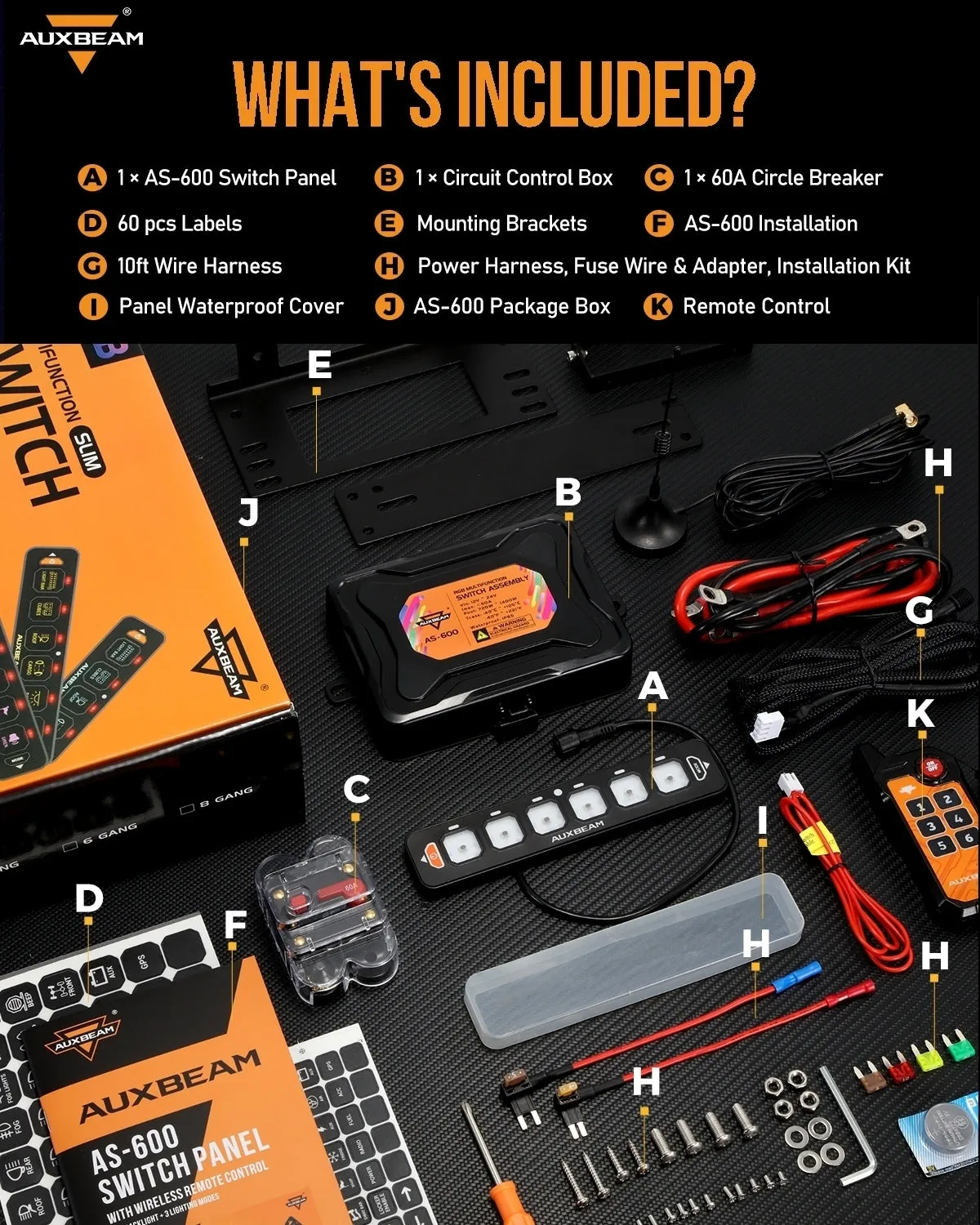

Package Included:
- 1 Set of 4/6 Gang RGB Switch Panel (all necessary hardware and wiring harness is included)
- Installation Instructions
