Product Details
＋
Product Overview

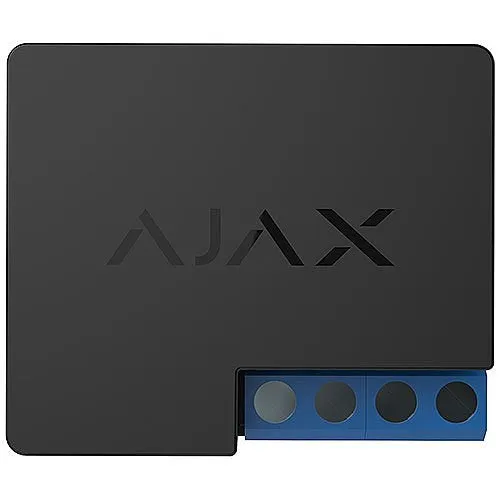

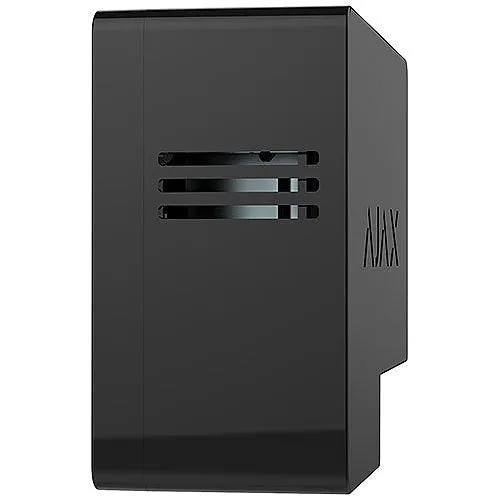

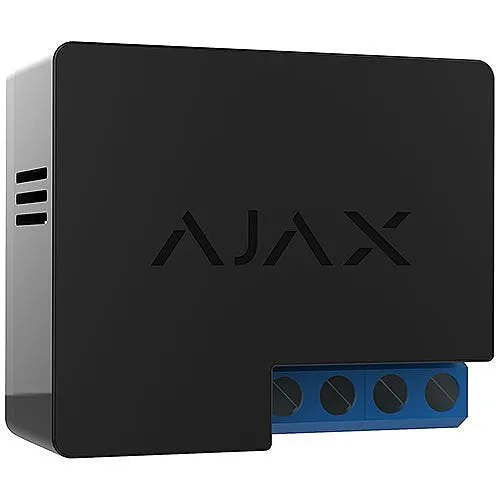

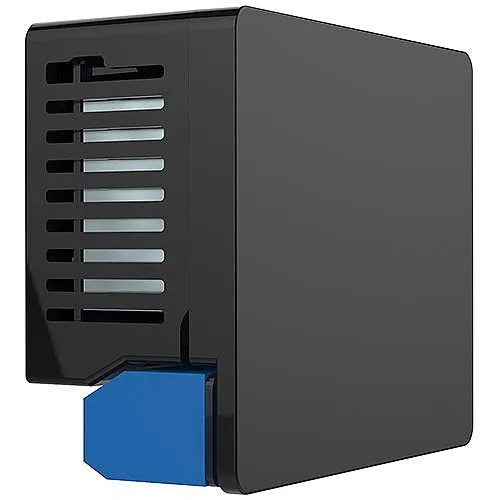

Settings versatility and low power consumption make Relay a universal tool for equipment control. Dry contact is not galvanically connected to the device power supply so that it can be used both in low-voltage and household networks. There are bistable and pulse modes. The relay can be easily connected to a power supply unit paired with a backup battery. Connecting Relay to the hub takes less than a minute — it's enough to scan a QR code with the Ajax app. The miniature device (39×33×18 mm) fits easily into a junction box, an electrical panel, or a switching unit body with DIN Holder. And the flexible external antenna provides stable connectivity.
Main Features
- Pulse 1–255 seconds
- Power supply 7–24 V
- Dry contact
- Two-way communication at a distance of up to 1000 meters
- 5 radio signal range extenders in the system
- Command delivery in 0.15 s
- Adjustable ping from 12 s
General Information
Name: AJAX 42837.19.NC3 Remote Control Low Current Relay with Dry Contacts, AJAX SYSTEMS CH, AJAX
Category: AJAX, Intrusion, Power Products, Relays
UPC Code: 850042389195
