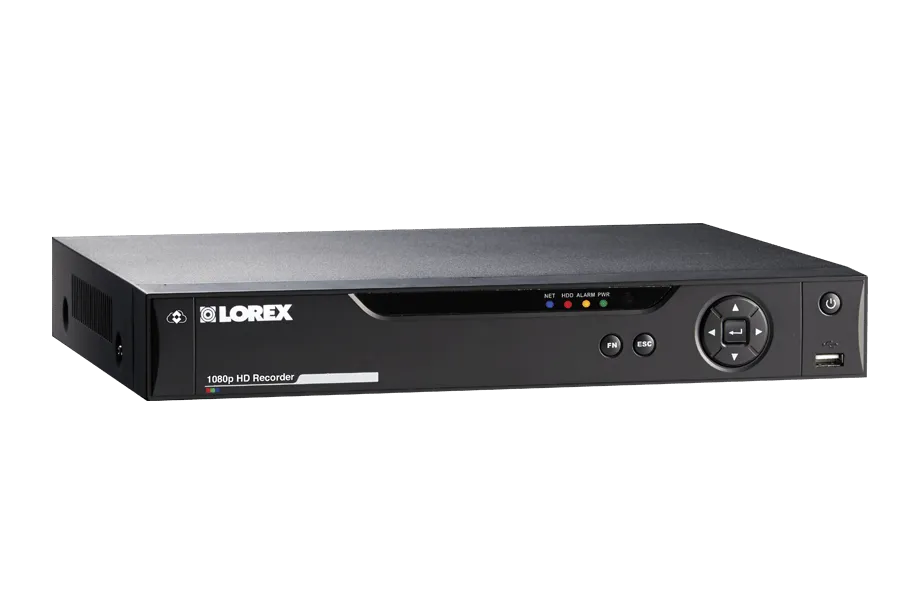

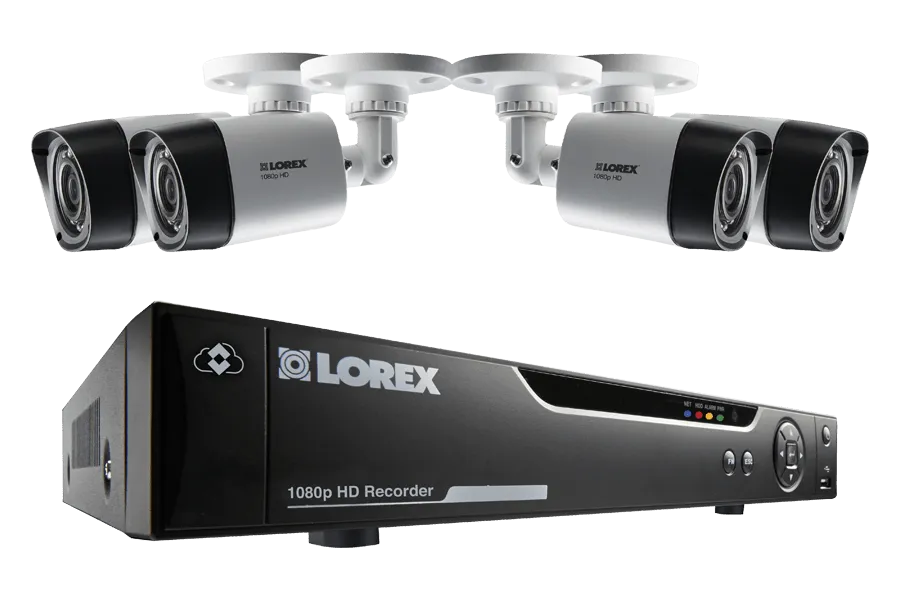

Experience the gold standard in analog surveillance video that is second only to being there yourself. This HD DVR records video in real-time at 1080p HD on all 4 channels. Including fully-loaded megapixel security cameras, this system uses standard BNC cabling to transmit stunning HD images for a surveillance experience like no other. Maintain vigilance with best-in-class image quality and view your world with new eyes.
LHV414F
SPECIFICATIONS
4CHANNELS
HD DVR supports up to 4 cameras
4
CAMERAS
1080p High Definition Security Cameras
130FT
NIGHT VISION
Maximum night vision range
1TB
HARD DRIVE
Expandable up to 4TB
Lorex Cloud apps for smartphones & tablets
This DVR is designed for use with our Lorex Cloud app. This exclusive remote access app for viewing live and recorded video from your security cameras on your smartphone or tablet is easy to use and ready in 3 simple steps. This app will also enable convenient push notifications for motion-triggered events so you can always be in-the-know.
Works With

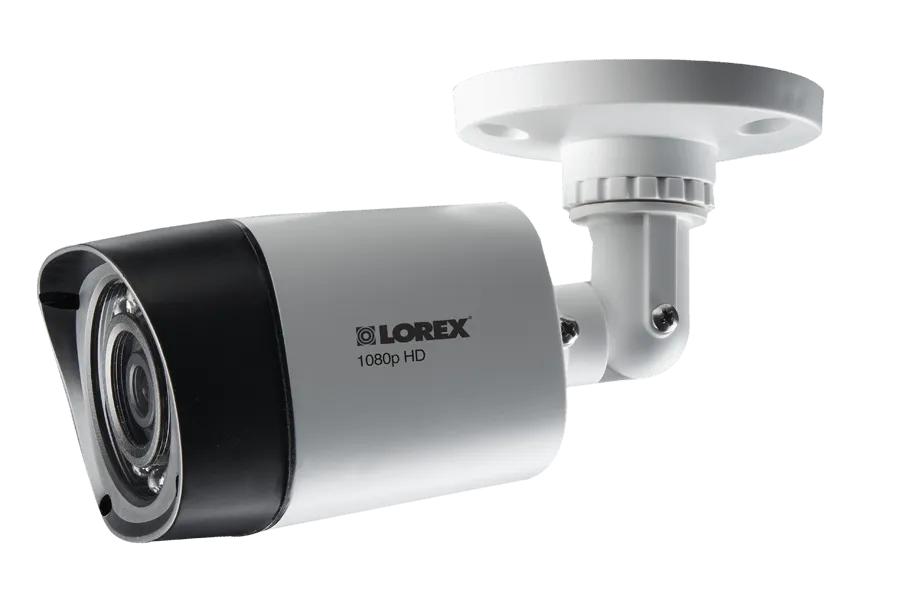

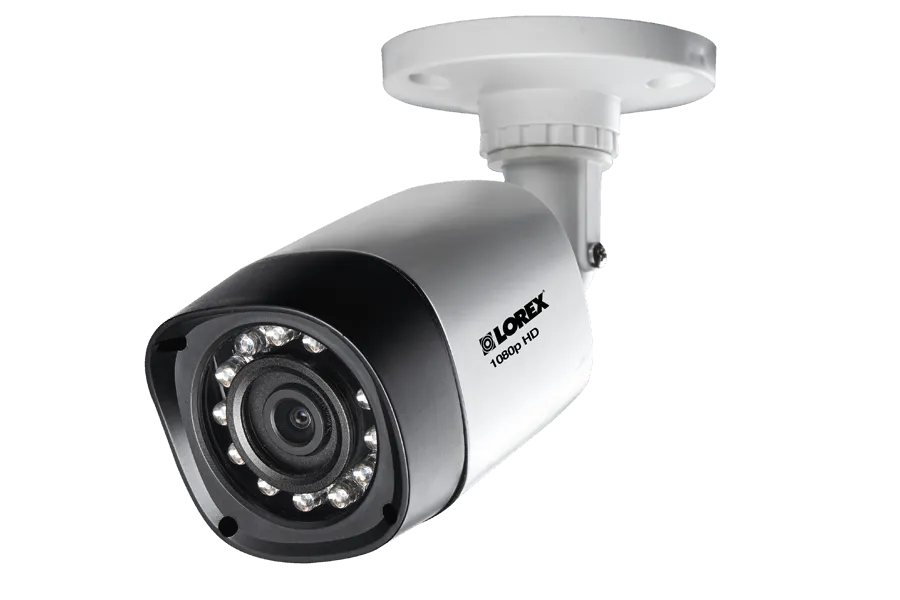

The HD DVR is bundled with 1080p wired HD bullet cameras that provide superb surveillance footage both day and night. The cameras are ideal for indoor and outdoor applications, with a fully weatherproof, polycarbonate housing that stands up against intruders and the elements. See it all, day and night, with best-in-class low light clarity, close up recognition in the dark with Smart IR, and an impressive night vision range of up to 130ft (40m).
Record to the security grade 100% duty-cycle hard drive designed for surveillance, providing weeks or even months of reliable video. Customize the recording settings to fit your needs. Record at 1080p HD (1920x1080) for the highest resolution, or change the settings to a lower resolution for extended recording time.
For those who already own a wired security system, upgrading to HD surveillance has never been easier - simply swap out your old BNC cameras for new 1080p wired HD cameras that use the same cabling. Extend the video signal up to 800ft (242m) with a single run of RG59 coaxial cable for flexible installation.

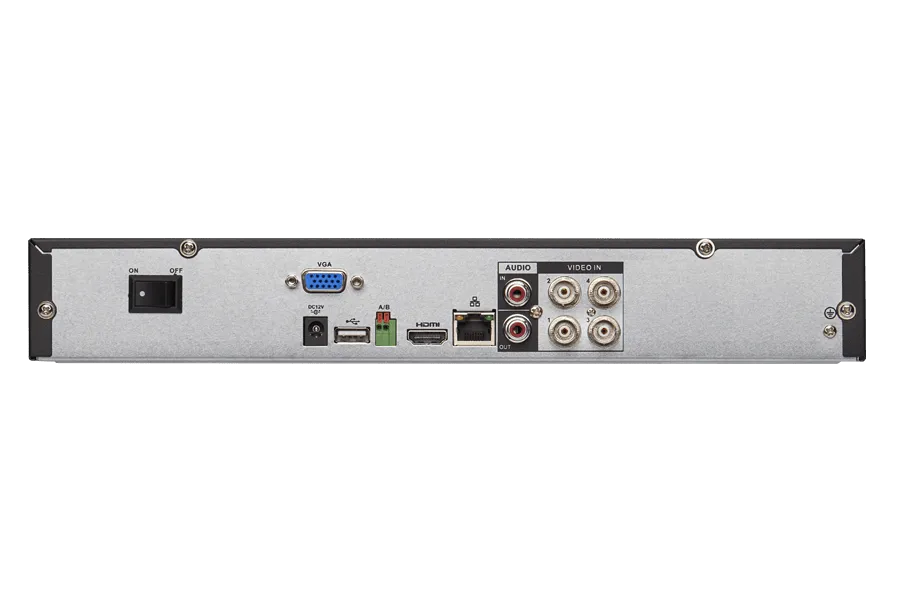

Connect the HD DVR to a TV or LCD monitor with industry standard HDMI and VGA inputs. The intuitive interface with simple menus and icons allow for easy & efficient security DVR programming. Other advanced features of the HD DVR include click-and-drag digital zoom in live view and playback, dynamic drag & drop camera assignment, and PTZ control through coaxial cabling.
Recording | Full 1080p HD (1920x1080) | 720p HD (1280x720) | Analog 1080p HD (1920x1080) | 720p HD (1280x720) |
Platform | 1080p HD NVR systems | 720p HD NVR systems | 1080p HD DVR systems | 720p HD DVR systems |
Video | Digital IP / RJ45 connection | Digital IP / RJ45 connection | Analog BNC / RG59 connection | Analog BNC / RG59 connection |
Power | PoE (Power over Ethernet) | PoE (Power over Ethernet) | Standard DC power | Standard DC power |
Installation | Connect cameras to NVR or to router/LAN | Connect cameras to NVR or to router/LAN | Cameras require wired connection to DVR | Cameras require wired connection to DVR |
