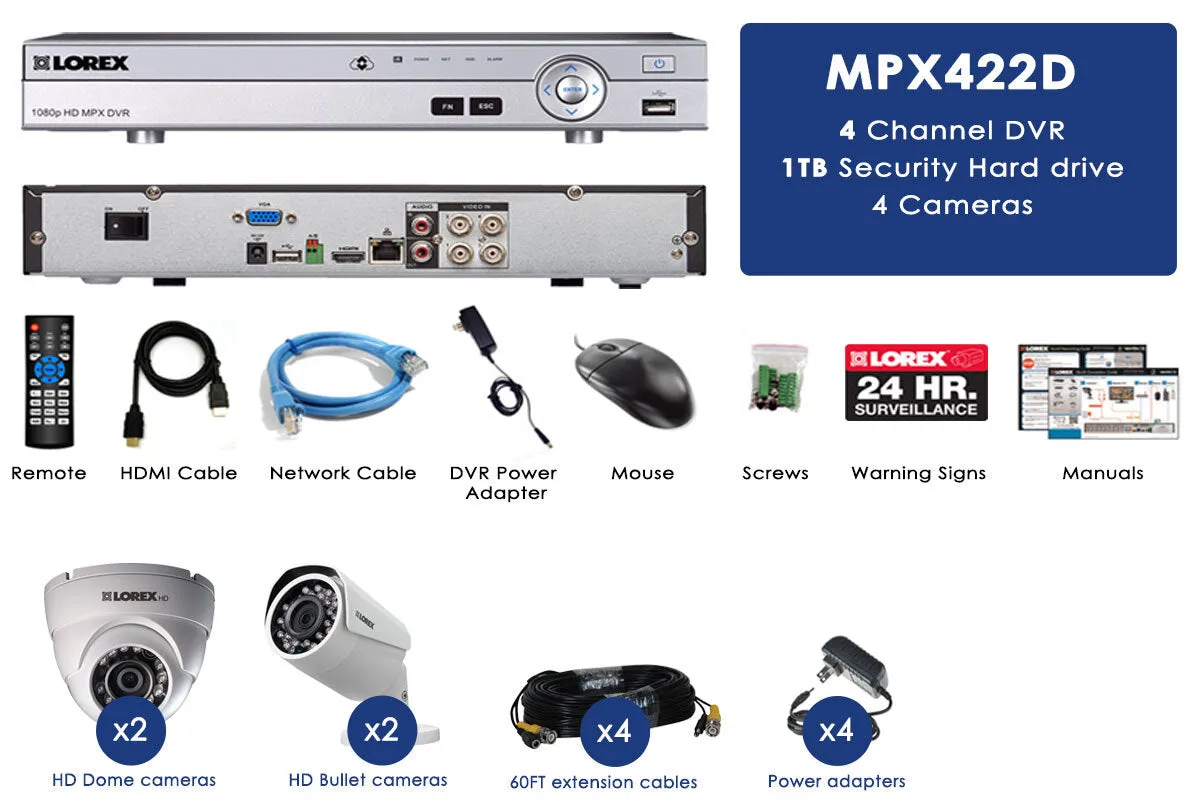

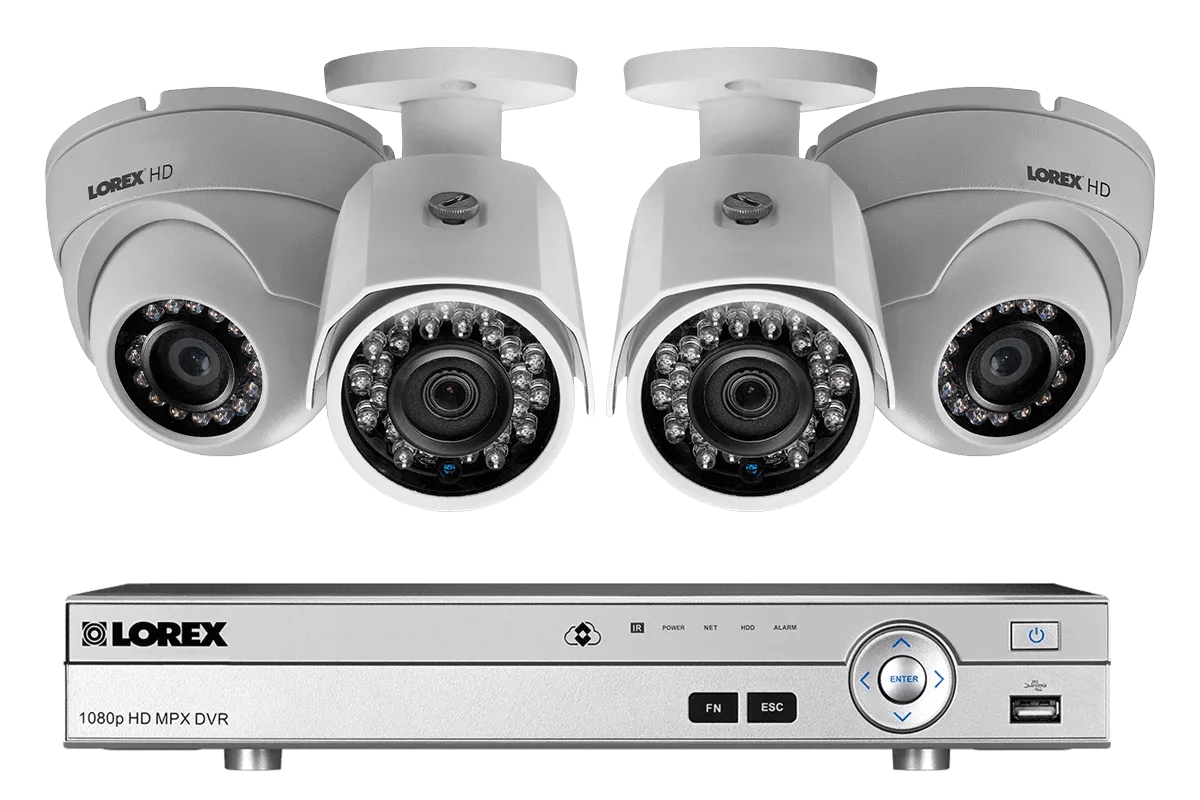

Experience a heightened level of clarity and detail in your surveillance monitoring with this complete 1080p HD surveillance system from Lorex. The MPX422D features our first-class DV700 HD DVR paired with two LBV2711B bullet and two LEV2712B dome 1080p weatherproof security cameras. Perfect for your home or business, the MPX422D is a professional-grade surveillance system that provides you with industry-leading HD resolution and outstanding night vision to help you secure what matters most.
MPX422DW
SPECIFICATIONS
4
CHANNELS
1080P DVR can support up to 4 cameras
4
CAMERAS
4 HD 1080p security cameras
150FT
NIGHT VISION
Maximum night vision
1TB
HARD DRIVE
Maximum capacity 1 x 4TB hard drive
Detailed 1080p HD security coverage
This surveillance system is at the forefront of HD analog technology and will produce industry leading 1080p (1920x1080) live viewing and recording. HD detail leaves nothing in question, and could be the difference in identifying faces. Never miss moment with the smooth on-screen movement provided by the real-time 30 frames-per-second video (in 720p mode). Utilize the included HDMI cable to easily connect the MPX422D’s HD DVR to an HDTV or monitor to view live security video or recordings.
Reliable analog HD over a single BNC cable
Standard BNC cabling is used in the MPX422D to deliver stunning 1080p HD video. This BNC cable provides both video and power transmission for an easy-to-install process that will have your surveillance system up and running in no time. If needed, analog HD cameras like the these can be installed up to 800 feet away from the DVR - making them ideal for watching over large properties (see documentation for complete details).
Stay connected with Lorex Cloud™ App
Connect to our Lorex Cloud™ software to make your entire MPX422D surveillance system accessible via the internet. Download the free app to your smartphone or tablet to view and manage your surveillance system from anywhere in the world. With Lorex Cloud™ you can even configure your DVR to send instant email alerts with screenshot attachments or push notifications straight to the home screen of your mobile device for any motion-triggered events caught by your security cameras.
Works With
24/7 protection with night vision

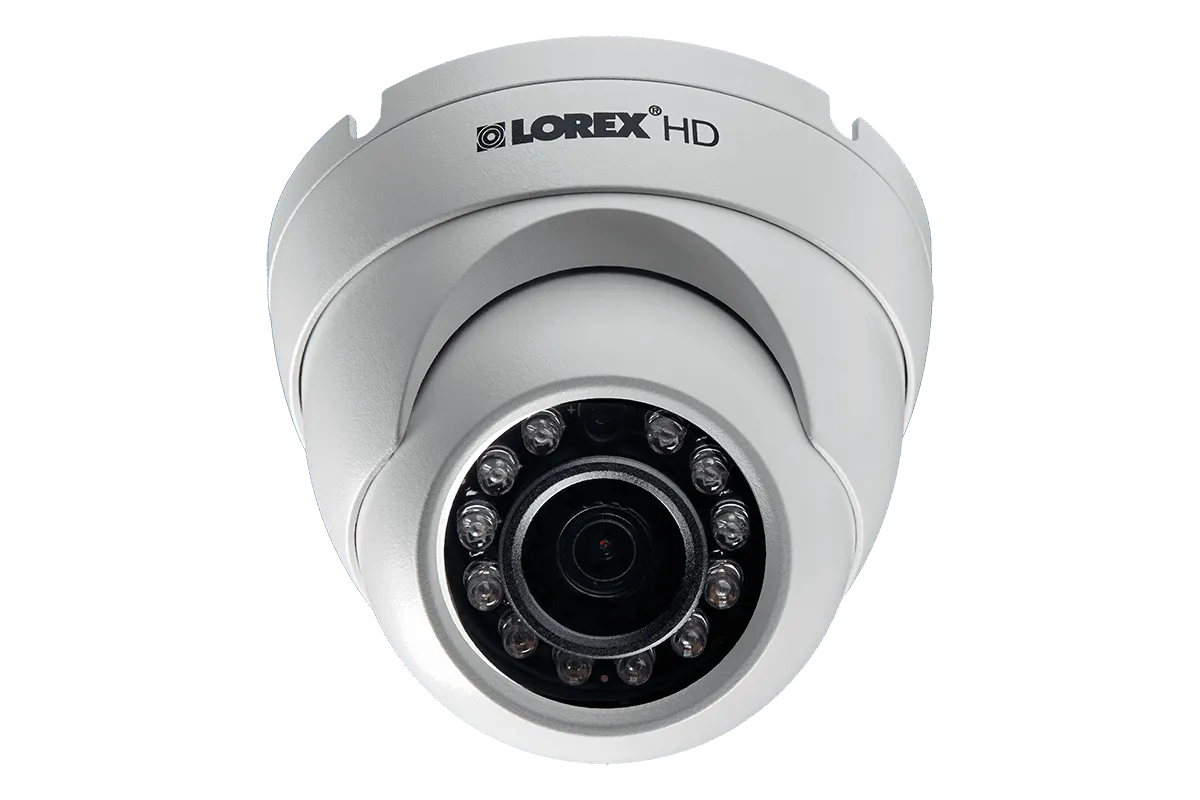

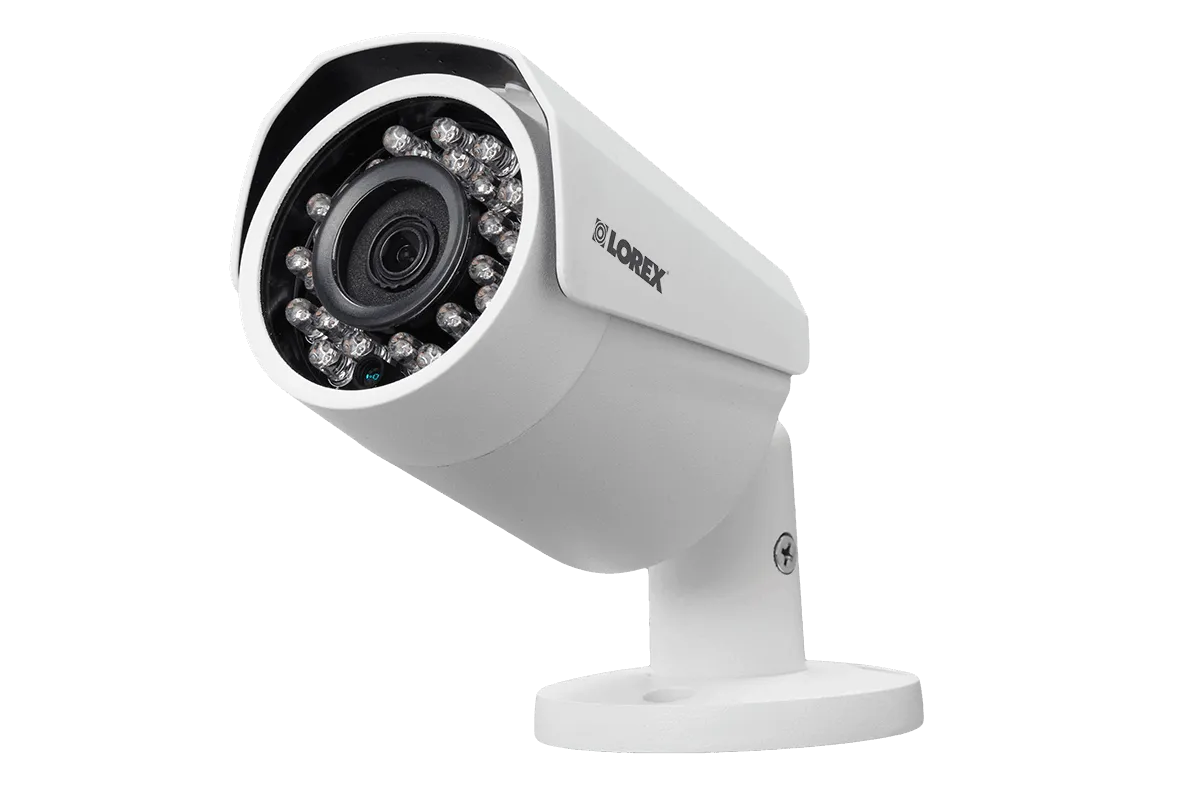

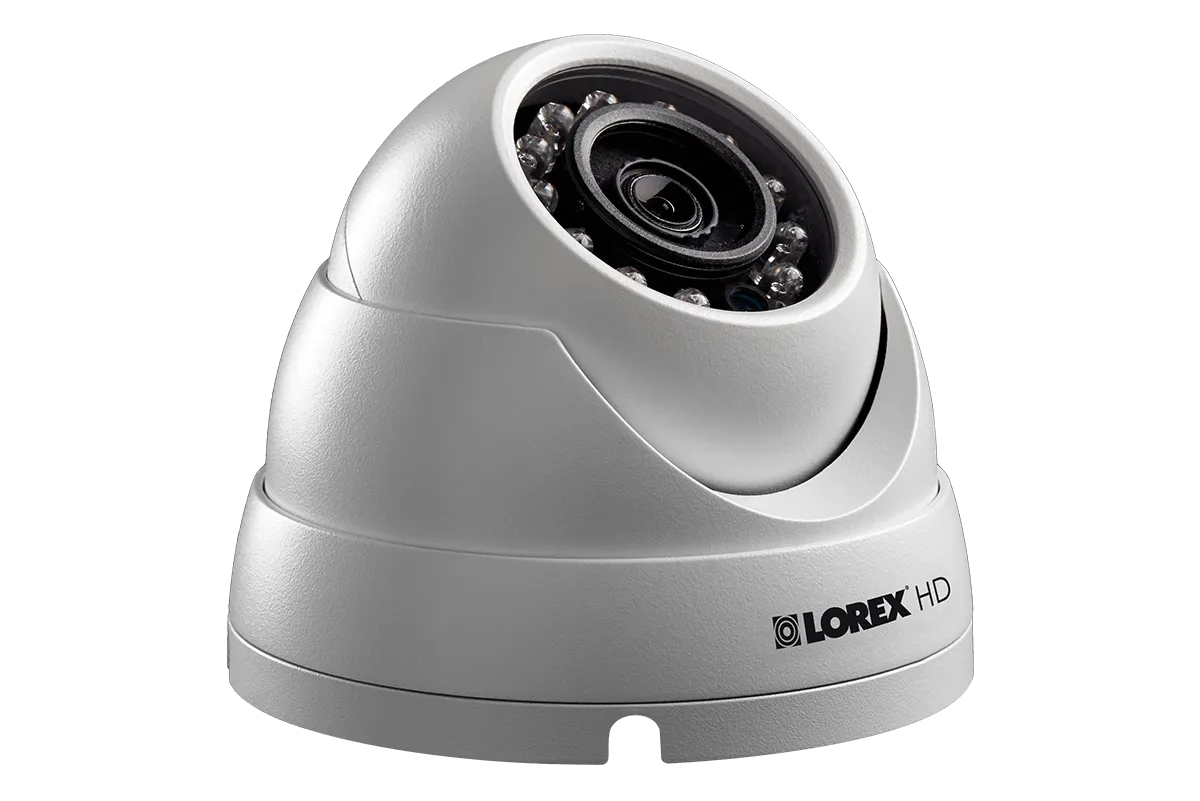

Rest assured that your Lorex surveillance system will be there for you throughout the night. The MPX422D comes with a total of four HD security cameras, all with excellent security coverage in the dark. The two LBV2711B HD security cameras can see in the dark up to 150ft / 55m away, while the high definition LEV2712B HD security cameras provide detailed night vision images up to 130ft / 40m away. These cameras also feature SmartIR technology that aids close up recognition of objects and ClearNight imaging that provide superior low light operation (and recording efficiency).
All-season security cameras built to last
When it comes to outdoor installation options, Lorex’s security cameras prove to be exceptionally strong and flexible. The LBV2711B and LEV2712B HD security cameras are no exception. Versatile ceiling or wall mounting options allow you to install the cameras wherever you need them most - indoors and outdoors. rated, your security cameras can endure heavy rainfalls and extreme temperatures as low as -22°F (-30°C). Their lightweight and durable polycarbonate housing makes them an ideal choice for your home or business.
LBV2711B
140°F | 60°C
Heat Rating
-22°F | -30°C
Cold Rating
LEV2712B
140°F | 60°C
Heat Rating
-22°F | -30°C
Cold Rating

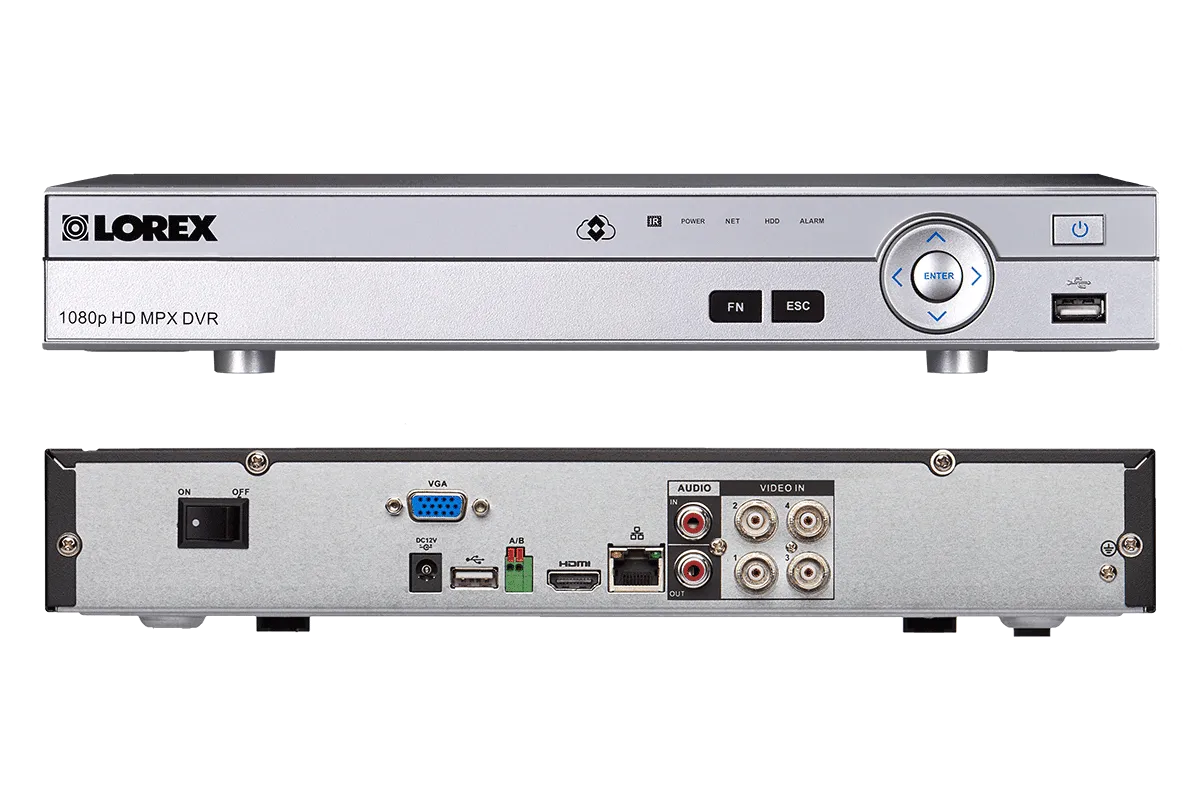

Security certified hard drive included
The MPX422D uses a within the included DV700 HD DVR. Not your conventional HDD, this hard drive is manufactured with the ability to safely record and playback footage simultaneously. With 1 terabyte of storage, you can record weeks (or even months) of footage. Configure your DVR to record in a lower resolution or program scheduled and motion-triggered recordings to maximize your hard drive storage space.
| Recording | Full 1080p HD (1920x1080) | 720p HD (1280x720) | Analog 1080p HD (1920x1080) | 720p HD (1280x720) |
| Platform | 1080p HD NVR systems | 720p HD NVR systems | 1080p HD DVR systems | 720p HD DVR systems |
| Video | Digital IP / RJ45 connection | Digital IP / RJ45 connection | Analog BNC / RG59 connection | Analog BNC / RG59 connection |
| Power | PoE (Power over Ethernet) | PoE (Power over Ethernet) | Standard DC power | Standard DC power |
| Installation | Connect cameras to NVR or to router/LAN | Connect cameras to NVR or to router/LAN | Cameras require wired connection to DVR | Cameras require wired connection to DVR |
